ISL80015, ISL80020 - Compact Synchronous Buck Converters

ISL80015 Description

DATASHEET ISL80020, ISL80020A, ISL80015, ISL80015A Compact Synchronous Buck Converters FN6692 Rev 3.00 June 5, 2015 The ISL80020, ISL80020A, ISL800.
PIN # 1 2 3 4 5 6 7 8 9 PIN NAME VIN EN SGND PG FB NC PGND PHASE E PAD PIN DESCRIPTION The input supply for the power stage of the PWM regulator a.

ISL80015 Features

* VIN range 2.7V to 5.5V
* IOUT maximum is 1.5A or 2A (see Table 1 on page 2)
* Switching frequency is 1MHz or 2MHz (see Table 1 on page 2)
* Overcurrent and short circuit protection
* Over-temperature/thermal protection
* Negative current protection

ISL80015 Applications

* General purpose POL
* Industrial, instrumentation, and medical equipment
* Telecom and networking equipment
* Game console VIN GND EN PG +2.7V+5.5V C1 22µF 1 VIN 2 EN ISL80015, ISL80020 3 SGND 4 PG EPAD 9 L1 PHASE 8 PGND 7 +1.8V/2A C2 22µF NC 6 FB 5 0.6V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL80015, ISL80020. Please refer to the document for exact specifications by model.

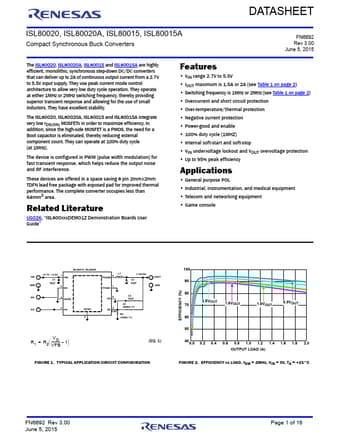

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL80015, ISL80020
Manufacturer
Renesas ↗
File Size
0.98 MB
Datasheet
ISL80020-Renesas.pdf
Description
Compact Synchronous Buck Converters
Note
This datasheet PDF includes multiple part numbers: ISL80015, ISL80020.
Please refer to the document for exact specifications by model.
