ISL80020

Compact Synchronous Buck Converters

ISL80020 Features

* VIN range 2.7V to 5.5V

* IOUT maximum is 1.5A or 2A (see Table 1 on page 2)

* Switching frequency is 1MHz or 2MHz (see Table 1 on page 2)

* Overcurrent and short circuit protection

* Over-temperature/thermal protection

* Negative current protection

ISL80020 General Description

PIN # 1 2 3 4 5 6 7 8 9 PIN NAME VIN EN SGND PG FB NC PGND PHASE E PAD PIN DESCRIPTION The input supply for the power stage of the PWM regulator and the source for the internal linear regulator that provides bias for the IC. Place a minimum of 10µF ceramic capacitance from VIN to GND and as clos.

ISL80020 Datasheet (0.98 MB)

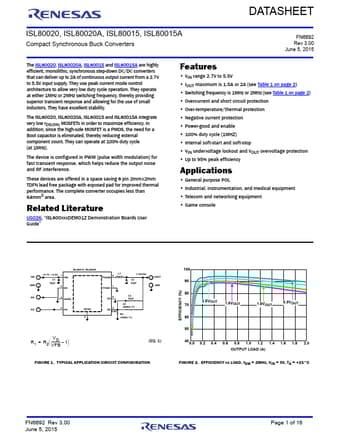

Preview of ISL80020 PDF

Datasheet Details

Part number:

ISL80020

Manufacturer:

Renesas ↗

File Size:

0.98 MB

Description:

Compact synchronous buck converters.
DATASHEET ISL80020, ISL80020A, ISL80015, ISL80015A Compact Synchronous Buck Converters FN6692 Rev 3.00 June 5, 2015 The ISL80020, ISL80020A, ISL800.
