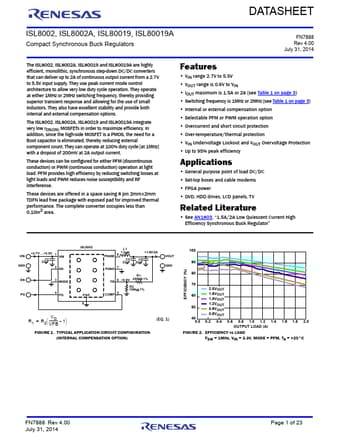

DATASHEET ISL8002, ISL8002A, ISL80019, ISL80019A Compact Synchronous Buck Regulators FN7888 Rev 4.00 July 31, 2014 The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2.7V to 5.5V input supply.
They use peak current mode control architecture to allow very low duty cycle operation.
They operate at either 1MHz or 2MHz switching frequency, thereby providing superior tr
ISL8002A Features
* VIN range 2.7V to 5.5V
* VOUT range is 0.6V to VIN
* IOUT maximum is 1.5A or 2A (see Table 1 on page 3)
* Switching frequency is 1MHz or 2MHz (see Table 1 on page 3)
* Internal or external compensation option
* Selectable PFM or PWM operation option
Datasheet Details
ISL8002A, ISL8002
1.78 MB
Compact synchronous buck regulators.
This datasheet PDF includes multiple part numbers: ISL8002A, ISL8002.
Please refer to the document for exact specifications by model.
