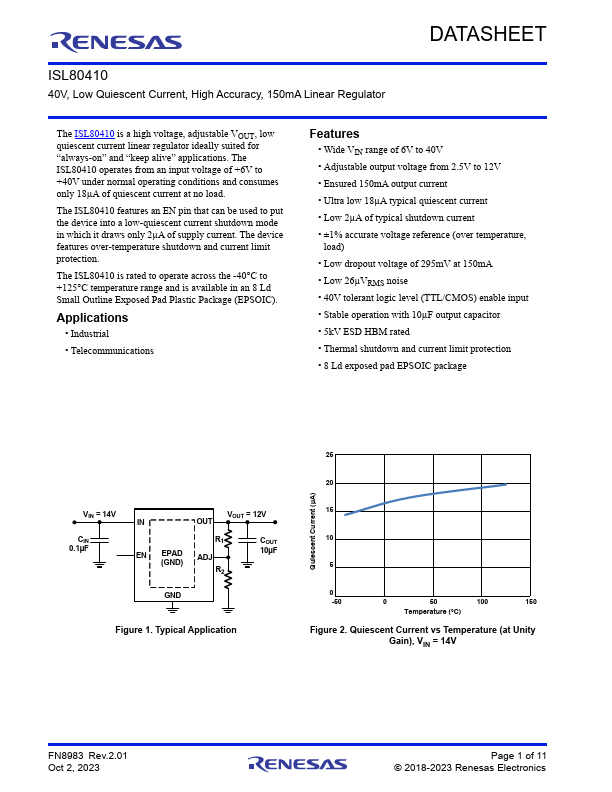

ISL80410 Datasheet (Renesas) - 150mA Linear Regulator

ISL80410, 150mA Linear Regulator

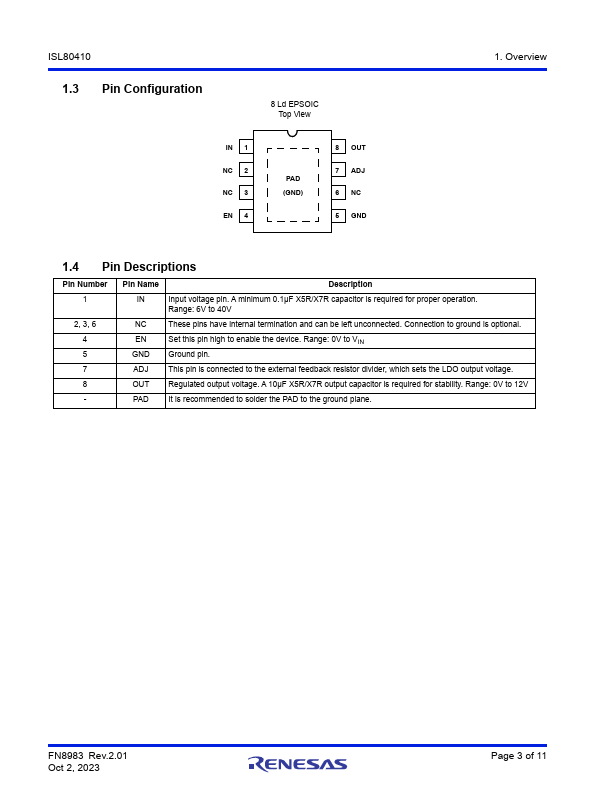

Pin Number 1 2, 3, 6 4 5 7 8 - Pin Name Description IN Input voltage pin.

A minimum 0.1µF X5R/X7R capacitor is required for proper operation.

Range: 6V to 40V NC These pins have internal termination and can be left unconnected.

Connection to ground is optional.

EN GND Set this pin high to

ISL80410 Features

* an EN pin that can be used to put the device into a low-quiescent current shutdown mode in which it draws only 2µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80410 is rated to operate across the -40°C to +125°C temperature range and is avail
