ISL84523, ISL84521 - Analog Switches

ISL84523 Description

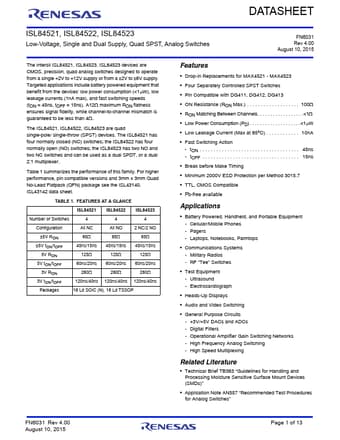

DATASHEET ISL84521, ISL84522, ISL84523 Low-Voltage, Single and Dual Supply, Quad SPST, Analog Switches FN6031 Rev 4.00 August 10, 2015 The Intersil.
PIN FUNCTION V+ Positive Power Supply Input V- Negative Power Supply Input.

ISL84523 Features

* AT A GLANCE ISL84521 ISL84522 ISL84523 Number of Switches 4 4 4 Configuration 5V RON 5V tON/tOFF 5V RON 5V tON/tOFF 3V RON 3V tON/tOFF Packages All NC All NO 2 NC/2 NO 65 65 65 45ns/15ns 45ns/15ns 45ns/15ns 125 125 125 60ns/20ns 60ns/20ns 60ns/20ns 260 260 260 120ns/40

ISL84523 Applications

* include battery powered equipment that benefit from the devices’ low power consumption (

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL84523, ISL84521. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL84523, ISL84521
Manufacturer
Renesas ↗
File Size
686.74 KB
Datasheet
ISL84521-Renesas.pdf
Description
Analog Switches
Note
This datasheet PDF includes multiple part numbers: ISL84523, ISL84521.
Please refer to the document for exact specifications by model.
