ISL84524

4 to 1 Multiplexer and DPDT Analog Switches

ISL84524 Features

* AT A GLANCE RON AND tON/tOFF 3V RON 3V tON/tOFF 5V RON 5V tON/tOFF PACKAGE ISL84524 4:1 MUX ISL84525 DPDT 190Ω 190Ω 170ns/50ns 170ns/50ns 92Ω 92Ω 90ns/40ns 90ns/40ns 10 Ld MSOP Related Literature

* Technical Brief TB363 “Guidelines for Handling and Processing Moisture Sensitive

ISL84524 General Description

PIN FUNCTION V+ System Power Supply Input (+2V to +12V) GND Ground Connection INH Digital Control Input. Connect to GND for Normal Operation. Connect to V+ to turn all switches off. COM Analog Switch Common Pin NOX Analog Switch Normally Open Pin NCX Analog Switch Normally Closed Pin ADDX .

ISL84524 Datasheet (639.52 KB)

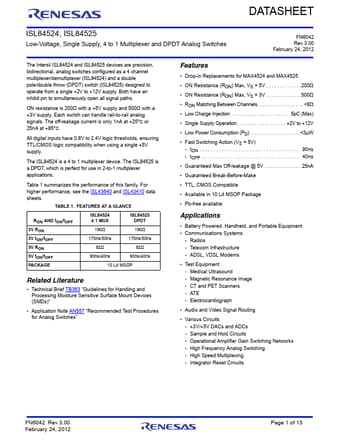

Preview of ISL84524 PDF

Datasheet Details

Part number:

ISL84524

Manufacturer:

Renesas ↗

File Size:

639.52 KB

Description:

4 to 1 multiplexer and dpdt analog switches.
DATASHEET ISL84524, ISL84525 Low-Voltage, Single Supply, 4 to 1 Multiplexer and DPDT Analog Switches FN6042 Rev 3.00 February 24, 2012 The Intersil.
