ISL85003 - Highly Efficient 3A Synchronous Buck Regulator

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

4 Ordering Information .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

DATASHEET ISL85003, ISL85003A Highly Efficient 3A Synchronous Buck Regulator The ISL85003 and ISL85003A are synchronous buck regulators with integrated high-side and low-side FETs.

The regulator can operate from an input voltage range of 4.5V to 18V while delivering a very efficient continuous 3A current.

This is all delivered in a very compact 3mmx4mm DFN package.

The ISL85003 is designed on Renesas’ proprietary fab process that is designed to deliver very low rDS(ON) FETs with an optimized cu

ISL85003 Features

* Input voltage range 4.5V to 18V

* Output voltage adjustable from 0.8V, ±1%

* Efficiency up to 95%

* Integrated boot diode with undervoltage detection

* Current mode control - DCM/CCM - Internal or external compensation options - 500kHz switching frequency op

ISL85003-Renesas.pdf

Preview of ISL85003 PDF

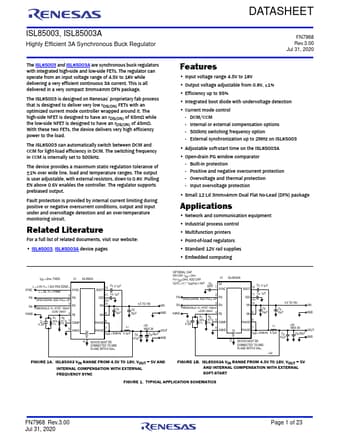

ISL85003 Datasheet Preview Page 2 ISL85003 Datasheet Preview Page 3
