Part number: ISL85009
Manufacturer: Renesas (https://www.renesas.com/)
File Size: 1.75MB
Download: 📄 Datasheet

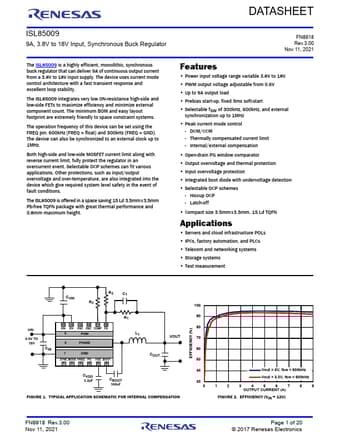

Description: Synchronous Buck Regulator
* Power input voltage range variable 3.8V to 18V
* PWM output voltage adjustable from 0.6V
* Up to 9A output load
* Prebias start-up, fixed 3ms soft-start.
Other protections, such as input/output overvoltage and over-temperature, are also integrated into the device which giv.
(RoHS COMPLIANT)
PKG. DWG. #
CARRIER TYPE (Note 5)
TEMP. RANGE
ISL85009FRZ-T
5009
15 Ld 3.5mmx3.5mm TQFN
L15.3.5x3.5
Reel, 6k
-40 to +125°C
ISL85009FRZ-T7A
Reel, 250
ISL85009EVAL1Z
Evaluation Board
NOTES: 5. See TB347 for details on ree.
