ISL8700 - Adjustable Quad Sequencer

ISL8700 Description

ISL8700, ISL8701, ISL8702 Adjustable Quad Sequencer The ISL8700, ISL8701, ISL8702 family of ICs provide four delay adjustable sequenced outputs while.

ISL8700 Features

* with a minimum of external BOM. See Figure 1 for typical implementation. Ordering Information PART NUMBER PART TEMP. PACKAGE PKG. (Note) MARKING RANGE (°C) (Pb-free) DWG. # ISL8700IBZ
* ISL 8700IBZ -40 to +85 14 Ld SOIC M14.15 ISL8701IBZ
* ISL 8701IBZ -40 to +85 14 Ld SOIC M14.15 ISL87

ISL8700 Applications

* Power Supply Sequencing
* System Timing Function 2.5V TO 24V (2.5V TO 12V FOR ISL8702) Ru VIN ENABLE_A SEQ_EN
* ENABLE_B ENABLE_C UV ENABLE_D Rm OV FAULT
* GND TB TC TD TIME Rl EN DC/DC Vo1 EN DC/DC Vo2 EN DC/DC Vo3 EN DC/DC Vo4
* SEQ_EN and FAUL

📥 Download Datasheet

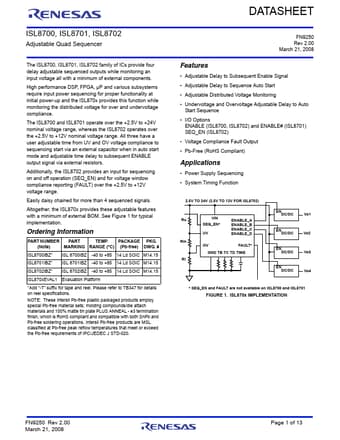

Preview of ISL8700 PDF
