ISL8700A, Adjustable Quad Sequencer

DATASHEET ISL8700A, ISL8701A, ISL8702A, ISL8703A, ISL8704A, ISL8705A FN6381 Rev 1.00 July 24, 2014 The ISL8700A, ISL8701A, ISL8702A, ISL8703A, ISL8.

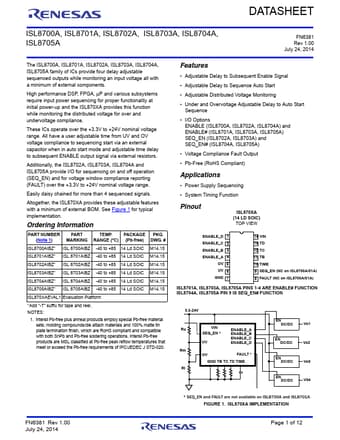

datasheet Preview Page 1 from Datasheet4u.com

ISL8700A-Renesas.pdf

ISL8700A Datasheet Preview — Preview of ISL8700A PDF

Datasheet Details

Part number:

ISL8700A

Manufacturer:

Renesas ↗

File Size:

420.21 KB

Description:

Adjustable Quad Sequencer

Features

* with a minimum of external BOM. See Figure 1 for typical implementation. Ordering Information PART NUMBER PART TEMP. PACKAGE PKG. (Note 1) MARKING RANGE (°C) (Pb-free) DWG. # ISL8700AIBZ
* ISL 8700AIBZ -40 to +85 14 Ld SOIC M14.15 ISL8701AIBZ
* ISL 8701AIBZ -40 to +85 14 Ld SOIC M14.15

Applications

* Power Supply Sequencing
* System Timing Function Pinout ISL870XA (14 LD SOIC) TOP VIEW ENABLE_D 1 ENABLE_C 2 ENABLE_B 3 ENABLE_A 4 OV 5 UV 6 GND 7 14 VIN 13 TD 12 TC 11 TB 10 TIME 9 SEQ_EN (NC on ISL8700A/01A) 8 FAULT (NC on ISL8700A/01A) ISL8701A, ISL8703A, ISL8705A PINS 1-4
