PIN NUMBER SYMBOL 1 U/D 2 V- 3 GND 4 CS 5 NC 6 RH 7 RW 8 RL 9 VCC 10 INC DESCRIPTION Controls the direction of wiper movement and whether the counter is incremented or decremented Negative bias voltage for the potentiometer wiper control Ground Chip select.
The device is sele

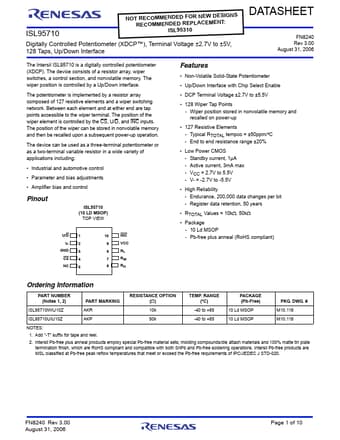

ISL95710 NOTRREECCOOMMMMEENNDDEEDDRFEOPRLANCEEWMDEENST:IGNS ISL95310 Digitally Controlled Potentiometer (XDCP™), Terminal Voltage ±2.7V to ±5V, 128 Taps, Up/Down Interface DATASHEET FN8240 Rev 3.00 August 31, 2006 The Intersil ISL95710 is a digitally controlled potentiometer (XDCP).
The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory.
The wiper position is controlled by a Up/Down interface.
The potentiometer is implemented by a resistor array co
ISL95710 Features
* Non-Volatile Solid-State Potentiometer
* Up/Down Interface with Chip Select Enable
* DCP Terminal Voltage ±2.7V to ±5.5V
* 128 Wiper Tap Points - Wiper position stored in nonvolatile memory and recalled on power-up
* 127 Resistive Elements - Typical RTOTAL t
