DATASHEET ISL95712 Multiphase PWM Regulator for AMD Fusion™ Desktop CPUs Using SVI 2.0 FN8566 Rev 1.00 November 2, 2015 The ISL95712 is fully compliant with AMD Fusion™ SVI 2.0 and provides a complete solution for microprocessor and graphics processor core power.

The ISL95712 controller supports two Voltage Regulators (VRs) for Core and Northbridge outputs.

The Core VR can be configured for 4-, 3-, 2-, or 1-phase operation while the Northbridge VR supports 3-, 2- or 1-phase configurations for

ISL95712 Features

* Both outputs support DCR current sensing with a single NTC thermistor for DCR temperature compensation or accurate resistor current sensing. They also utilize remote voltage sense, adjustable switching frequency, OC protection and power-good indicators. Applications

* AMD Fusion CPU/GPU cor

ISL95712-Renesas.pdf

Preview of ISL95712 PDF

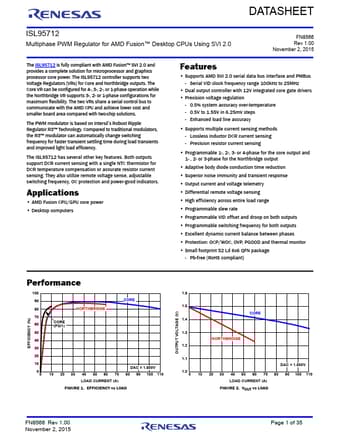

ISL95712 Datasheet Preview Page 2 ISL95712 Datasheet Preview Page 3
