KAD5510P, Low Power 10-Bit ADC

KAD5510P Low Power 10-Bit, 250/210/170/125MSPS ADC The KAD5510P is a family of low power, high performance 10-bit analog-to-digital converters.Design.

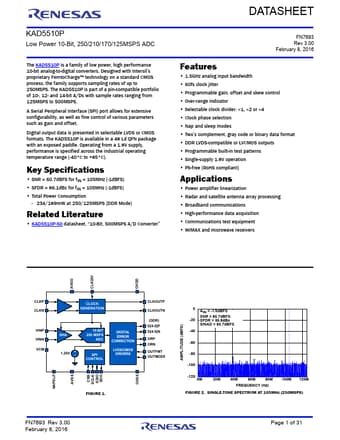

datasheet Preview Page 1 from Datasheet4u.com

KAD5510P-Renesas.pdf

KAD5510P Datasheet Preview — Preview of KAD5510P PDF

Datasheet Details

Part number:

KAD5510P

Manufacturer:

Renesas ↗

File Size:

1.56 MB

Description:

Low Power 10-Bit ADC

Features

* 1.5GHz analog input bandwidth
* 60fs clock jitter
* Programmable gain, offset and skew control
* Over-range indicator
* Selectable clock divider: 1, 2 or 4
* Clock phase selection
* Nap and sleep modes
* Two’s complement, gray code

Applications

* Power amplifier linearization
* Radar and satellite antenna array processing
* Broadband communications
* High-performance data acquisition
* Communications test equipment
* WiMAX and microwave receivers AVDD CLKDIV OVDD CLKP CLKN VINP VINN VCM CL
