KAD5512P - 250/210/170/125MSPS ADC
- 72 Ld QFN .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 Pin Configuration.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7 Pin Descriptions - 48 Ld QFN .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7 Absolute Maximum Ratings .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

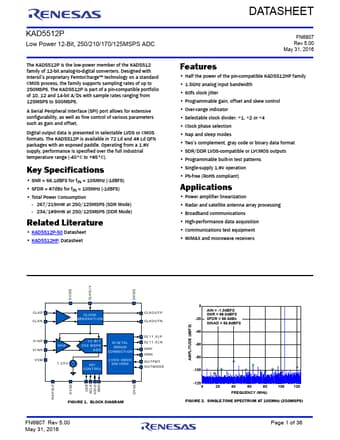

KAD5512P Low Power 12-Bit, 250/210/170/125MSPS ADC The KAD5512P is the low-power member of the KAD5512 family of 12-bit analog-to-digital converters.
Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process, the family supports sampling rates of up to 250MSPS.
The KAD5512P is part of a pin-compatible portfolio of 10, 12 and 14-bit A/Ds with sample rates ranging from 125MSPS to 500MSPS.
A Serial Peripheral Interface (SPI) port allows for extensive configurability, a
KAD5512P Features
* Half the power of the pin-compatible KAD5512HP family
* 1.5GHz analog input bandwidth
* 60fs clock jitter
* Programmable gain, offset and skew control
* Over-range indicator
* Selectable clock divider: ÷1, ÷2 or ÷4
* Clock phase selection
