KAD5510P-50 10-Bit, 500MSPS A/D Converter The KAD5510P-50 is a low-power, high performance, 10-bit, 500MSPS analog-to-digital converter designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process.

The KAD5510P-50 is part of a pin-compatible portfolio of 10, 12 and 14-bit A/Ds with sample rates ranging from 125MSPS to 500MSPS.

The device utilizes two time-interleaved 10-bit, 250MSPS A/D cores to achieve the ultimate sample rate of 500MSPS.

A single 500MHz conversion cl

KAD5510P-50 Features

* Programmable gain, offset and skew control

* 1.3GHz analog input bandwidth

* 60fs clock jitter

* Over-range indicator

* Selectable clock divider: ÷1 or ÷2

* Clock phase selection

* Nap and sleep modes

* Two’s complement, gray code or

KAD5510P-50-Renesas.pdf

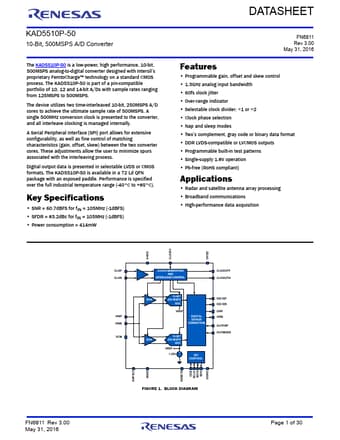

Preview of KAD5510P-50 PDF
