DATASHEET KAD5512HP High Performance 12-Bit, 250/210/170/125MSPS ADC FN6808 Rev 4.00 May 31, 2016 The KAD5512HP is the high performance member of the KAD5512 family of 12-bit analog-to-digital converters.

Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process, the family supports sampling rates of up to 250MSPS.

The KAD5512HP is part of a pin-compatible portfolio of 10, 12 and 14-bit A/Ds with sample rates ranging from 125MSPS to 500MSPS.

A Serial Peripheral I

KAD5512HP Features

* Pin-compatible with the KAD5512P Family, offering 2.2dB higher SNR

* Programmable gain, offset and skew control

* 950MHz analog input bandwidth

* 60fs Clock jitter

* Over-range indicator

* Selectable clock divider: ÷1, ÷2 or ÷4

* Clock phase

KAD5512HP-Renesas.pdf

Preview of KAD5512HP PDF

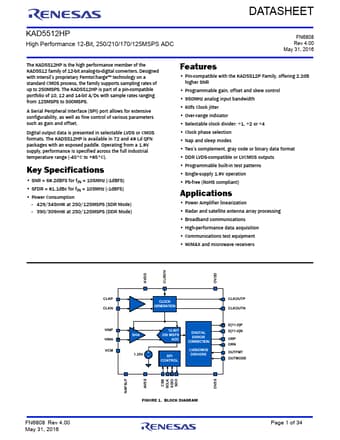

KAD5512HP Datasheet Preview Page 2 KAD5512HP Datasheet Preview Page 3
