M306K9FCLRP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Renesas

The M306K9FCLRP by Renesas is a SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER. Below is the official datasheet preview.

📥 Download Datasheet

M306K9FCLRP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER by Renesas - Datasheet Preview — Official preview page of the **M306K9FCLRP** SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER datasheet (Renesas).

Datasheet Details

Part number	M306K9FCLRP
Manufacturer	Renesas
File Size	2.50 MB
Description	SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Datasheet	M306K9FCLRP-Renesas.pdf
Additional preview pages of the M306K9FCLRP datasheet.

M306K9FCLRP Product details

Description

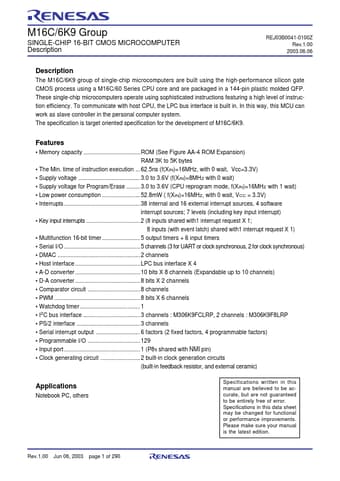

REJ03B0041-0100Z Rev.1.00 2003.06.06 Description The M16C/6K9 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 144-pin plastic molded QFP.These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency.To communicate with host CPU, the LPC bus interface is built in.In this way, this MCU can work as slave controller in the personal

Features

Memory capacity ROM (See Figure AA-4 ROM Expansion) RAM 3K to 5K bytes.
The Min. time of instruction execution 62.5ns (f(XIN)=16MHz, with 0 wait, Vcc=3.3V).
Supply voltage 3.0 to 3.6V (f(XIN)=8MHZ with 0 wait).
Supply voltage for Program/Erase 3.0 to 3.6V (CPU reprogram mode, f(XIN)=16MHZ with 1 wait).
Low power consumption 52.8mW ( f(XIN)=16MHZ, with 0 wait, VCC = 3.3V).
Interrupts 38 internal and 16 external interrupt sources, 4 soft.
