M306KAFCLRP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Renesas

The M306KAFCLRP by Renesas is a SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER. Below is the official datasheet preview.

📥 Download Datasheet

M306KAFCLRP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER by Renesas - Datasheet Preview — Official preview page of the **M306KAFCLRP** SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER datasheet (Renesas).

Datasheet Details

Part number	M306KAFCLRP
Manufacturer	Renesas
File Size	2.24 MB
Description	SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Datasheet	M306KAFCLRP-Renesas.pdf

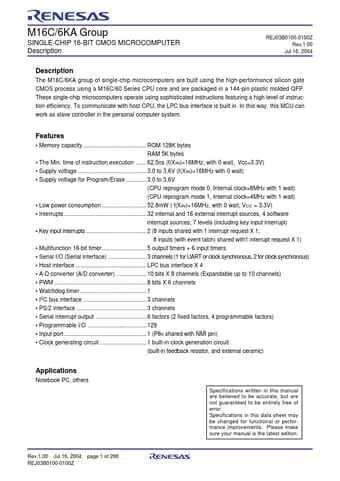

Additional preview pages of the M306KAFCLRP datasheet.

M306KAFCLRP Product details

Description

REJ03B0100-0100Z Rev.1.00 Jul 16, 2004 Description The M16C/6KA group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 144-pin plastic molded QFP.These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency.To communicate with host CPU, the LPC bus interface is built in.In this way, this MCU can work as slave controller in the person

Features

Memory capacity ROM 128K bytes RAM 5K bytes.
The Min. time of instruction execution 62.5ns (f(XIN)=16MHz, with 0 wait, Vcc=3.3V).
Supply voltage 3.0 to 3.6V (f(XIN)=16MHZ with 0 wait).
Supply voltage for Program/Erase 3.0 to 3.6V (CPU reprogram mode 0, Internal clock=8MHZ with 1 wait) (CPU reprogram mode 1, Internal clock=4MHZ with 1 wait).
Low power consumption 52.8mW ( f(XIN)=16MHZ, with 0 wait, VCC = 3.3V).
Interrupts 32 internal an.
