M5295AFP

Watchdog Timer

M5295AFP Features

* Watchdog timer

* Power on reset timer

* Low circuit current: 0.8 mA (Typ, VCC = 5 V)

* Wide supply voltage range: VCC(max) = 15 V Application

* Microcomputer system Recommended Operating Condition

* Supply voltage range: 4 V to 15 V

* Rated s

M5295AFP General Description

M5295A is a semiconductor integrated circuit which is designed for system reset to detect +5 V power supply. This IC keeps the operation microcomputer watching. When the system is abnormal, it generates reset output until the system returns to normal states of the system. It is possible to vary the .

M5295AFP Datasheet (244.58 KB)

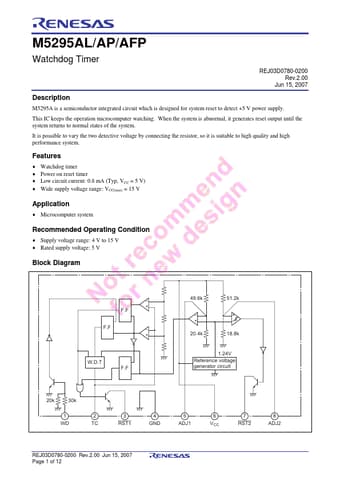

Preview of M5295AFP PDF

Datasheet Details

Part number:

M5295AFP

Manufacturer:

Renesas ↗

File Size:

244.58 KB

Description:

Watchdog timer.
