M5295AP, M5295AL Datasheet - Renesas

M5295AP Watchdog Timer

M5295A is a semiconductor integrated circuit which is designed for system reset to detect +5 V power supply. This IC keeps the operation microcomputer watching. When the system is abnormal, it generates reset output until the system returns to normal states of the system. It is possible to vary the .

M5295AP Features

* Watchdog timer

* Power on reset timer

* Low circuit current: 0.8 mA (Typ, VCC = 5 V)

* Wide supply voltage range: VCC(max) = 15 V Application

* Microcomputer system Recommended Operating Condition

* Supply voltage range: 4 V to 15 V

* Rated s

M5295AL-Renesas.pdf

This datasheet PDF includes multiple part numbers: M5295AP, M5295AL. Please refer to the document for exact specifications by model.

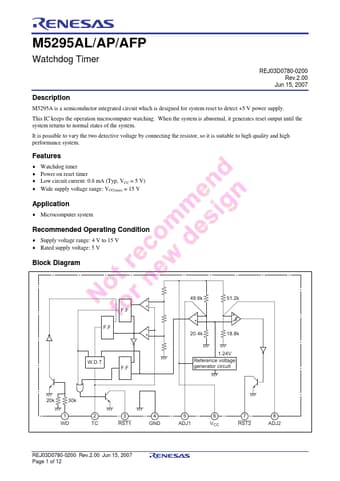

M5295AP Datasheet Preview Page 2 M5295AP Datasheet Preview Page 3

Datasheet Details

Part number:

M5295AP, M5295AL

Manufacturer:

Renesas ↗

File Size:

244.58 KB

Description:

Watchdog timer.

Note:

This datasheet PDF includes multiple part numbers: M5295AP, M5295AL.
Please refer to the document for exact specifications by model.
