NP82N06NLG, NP82N06MLG - N-CHANNEL POWER MOSFET

Renesas

Datasheet Details

Part number	NP82N06NLG, NP82N06MLG
Manufacturer	Renesas ↗
File Size	350.41 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	NP82N06MLG-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: NP82N06NLG, NP82N06MLG. Please refer to the document for exact specifications by model.

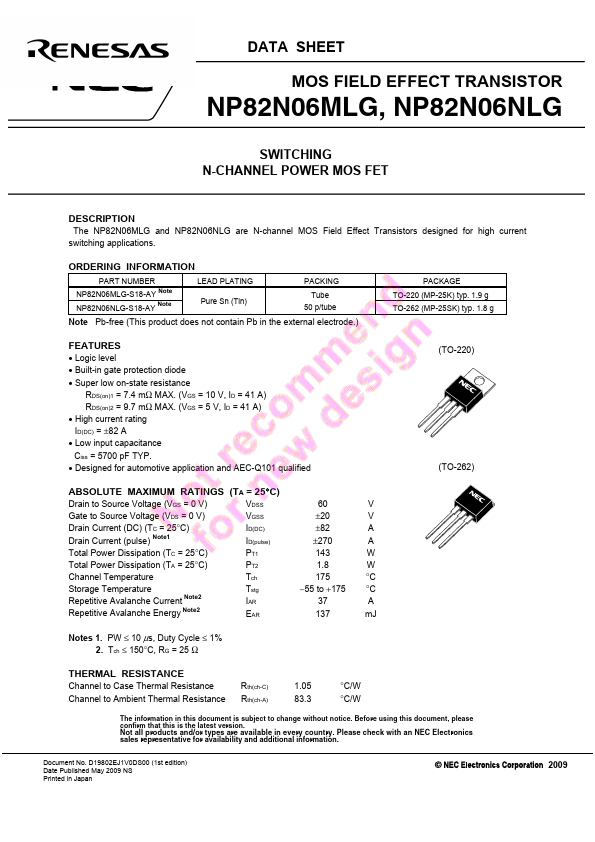

The NP82N06MLG and NP82N06NLG are N-channel MOS Field Effect Transistors designed for high current switching applications.

Logic level.
Built-in gate protection diode.
Super low on-state resistance RDS(on)1 = 7.4 mΩ MAX. (VGS = 10 V, ID = 41 A) RDS(on)2 = 9.7 mΩ MAX. (VGS = 5 V, ID = 41 A).
High current rating ID(DC) = ±82 A.
Low input capacitance Ciss = 5700 pF TYP.
Designed for automotive.
