PS2561DL1-1, PS2561D-1, DIP PHOTOCOUPLER

PS2561D-1, PS2561DL-1, PS2561DL1-1, PS2561DL2-1 DIP PHOTOCOUPLER OPERATING AMBIENT TEMPERATURE 110 °C Data Sheet R08DS0181EJ0101 Rev.1.01 Feb 21, 202.
The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

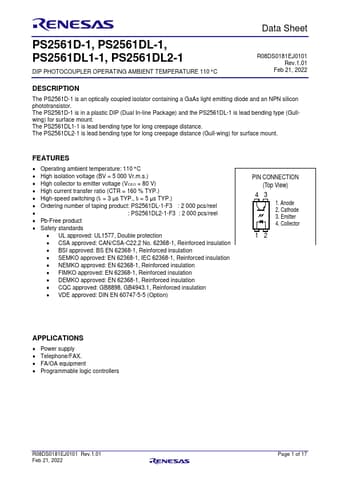

datasheet Preview Page 1 from Datasheet4u.com

PS2561D-1-Renesas.pdf

PS2561DL1-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2561DL1-1, PS2561D-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2561DL1-1, PS2561D-1

Manufacturer:

Renesas ↗

File Size:

451.74 KB

Description:

DIP PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: PS2561DL1-1, PS2561D-1.
Please refer to the document for exact specifications by model.

Features

* Operating ambient temperature: 110 °C
* High isolation voltage (BV = 5 000 Vr. m. s. )
* High collector to emitter voltage (VCEO = 80 V)
* High current transfer ratio (CTR = 160 % TYP. )
* High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP. )
* Ord

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controllers R08DS0181EJ0101 Rev.1.01 Feb 21, 2022 Page 1 of 17 PS2561D-1, PS2561DL-1, PS2561DL1-1, PS2561DL2-1e PACKAGE DIMENSIONS (UNIT: mm) DIP Type PS25xx
