RBE015N10R1SZPV - 100V 340A N-Channel Power MOSFET

Datasheet Summary

Description

The RBE015N10R1SZPV N-channel power MOSFET

Features

  • REXFET-1 split-gate technology and is offered in a TOLG package. The TOLG package has a similar profile and footprint to the TOLL package, but with the benefits of gullwing leads for high thermal cycling capability. Renesas' REXFET-1 split-gate technology is well-suited for.

📥 Download Datasheet

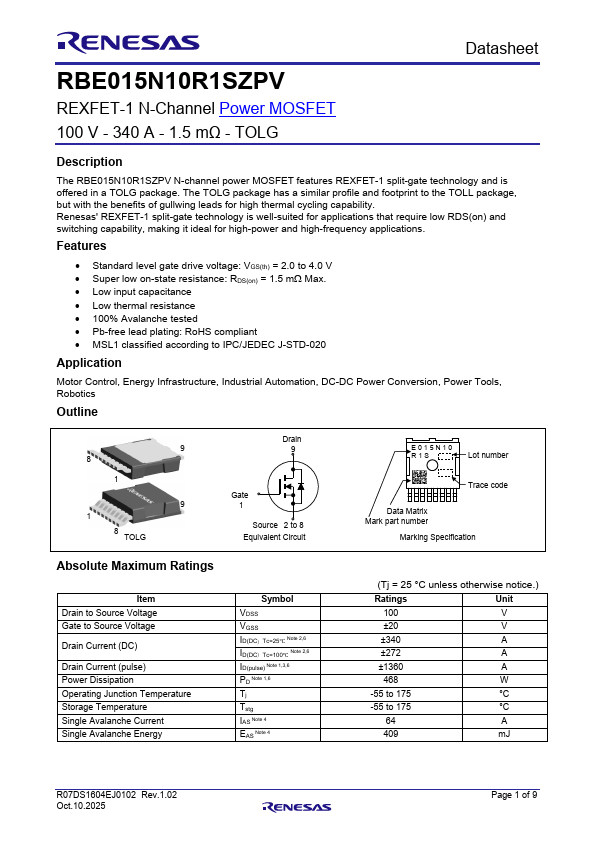

Datasheet preview – RBE015N10R1SZPV

Datasheet Details

Part number RBE015N10R1SZPV
Manufacturer Renesas
File Size 342.04 KB
Description 100V 340A N-Channel Power MOSFET
Datasheet download datasheet RBE015N10R1SZPV Datasheet

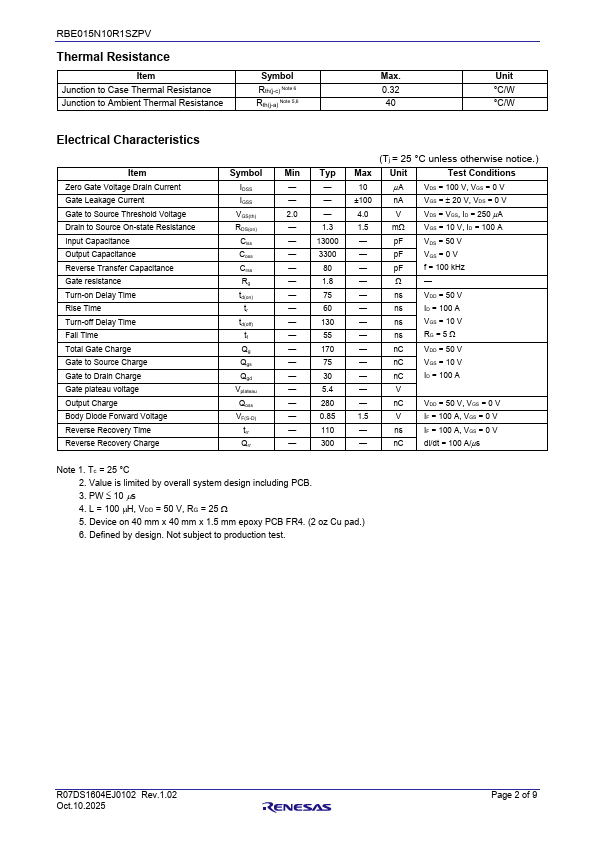

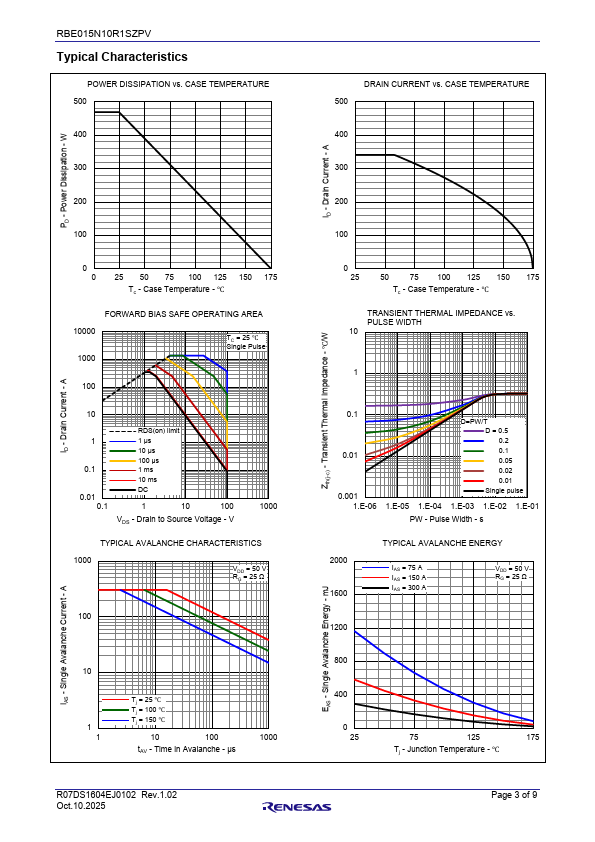

Additional preview pages of the RBE015N10R1SZPV datasheet.

📁 Similar Datasheet

Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
RBE015N10R1SZPV REXFET-1 N-Channel Power MOSFET 100 V - 340 A - 1.5 mΩ - TOLG Datasheet Description The RBE015N10R1SZPV N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a TOLG package. The TOLG package has a similar profile and footprint to the TOLL package, but with the benefits of gullwing leads for high thermal cycling capability. Renesas' REXFET-1 split-gate technology is well-suited for applications that require low RDS(on) and switching capability, making it ideal for high-power and high-frequency applications. Features • Standard level gate drive voltage: VGS(th) = 2.0 to 4.0 V • Super low on-state resistance: RDS(on) = 1.5 m Max.
