RBE029N10R1SZN6 - N-Channel Power MOSFET

Datasheet Summary

Description

The RBE029N10R1SZN6 N-channel power MOSFET

Features

REXFET-1 split-gate technology and is offered in a 5x6 SO8-FL package. The SO8-FL package features ultra compact, leadless designs with Wettable Flanks to support enhanced thermal performance, reliability and ease of assembly. Renesas' split gate technology is suitable for.

Renesas

📥 Download Datasheet

Datasheet Details

Part number	RBE029N10R1SZN6
Manufacturer	Renesas
File Size	353.60 KB
Description	N-Channel Power MOSFET

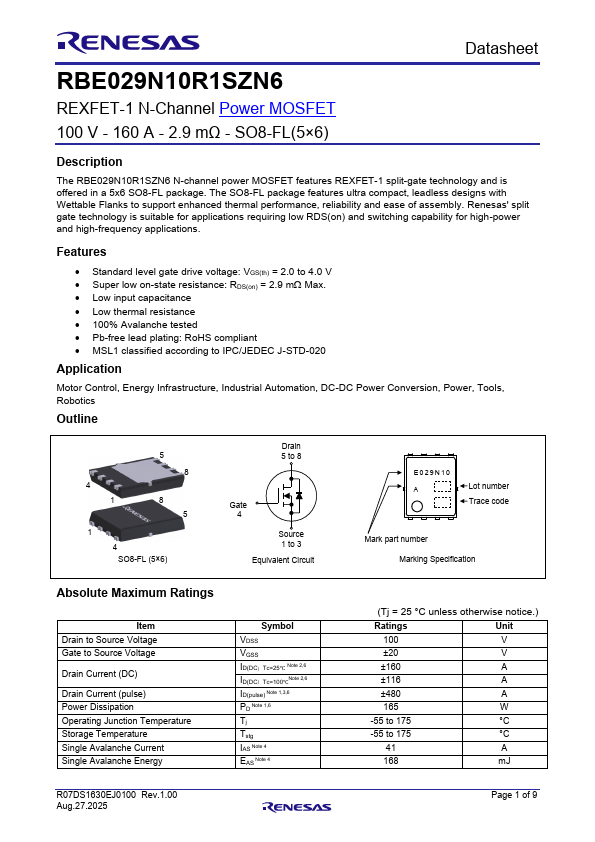

Datasheet	RBE029N10R1SZN6 Datasheet

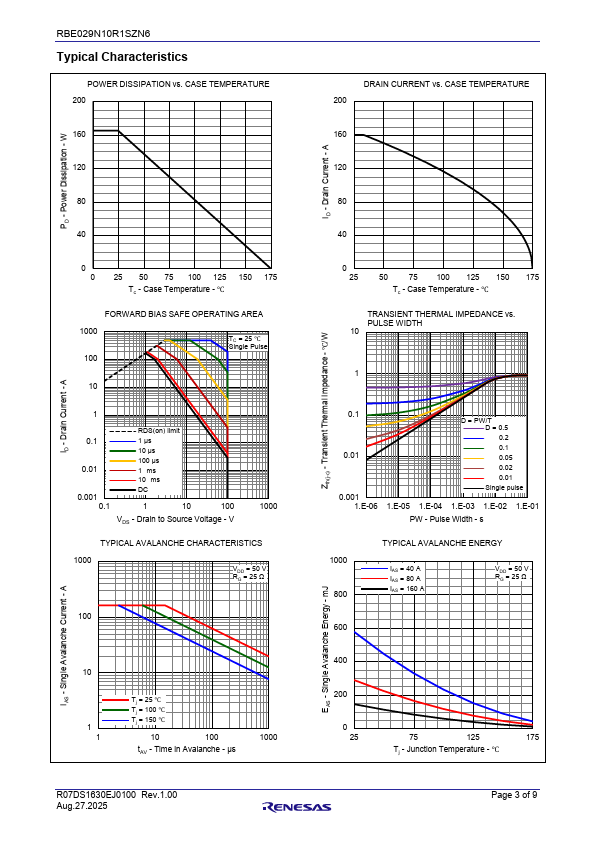

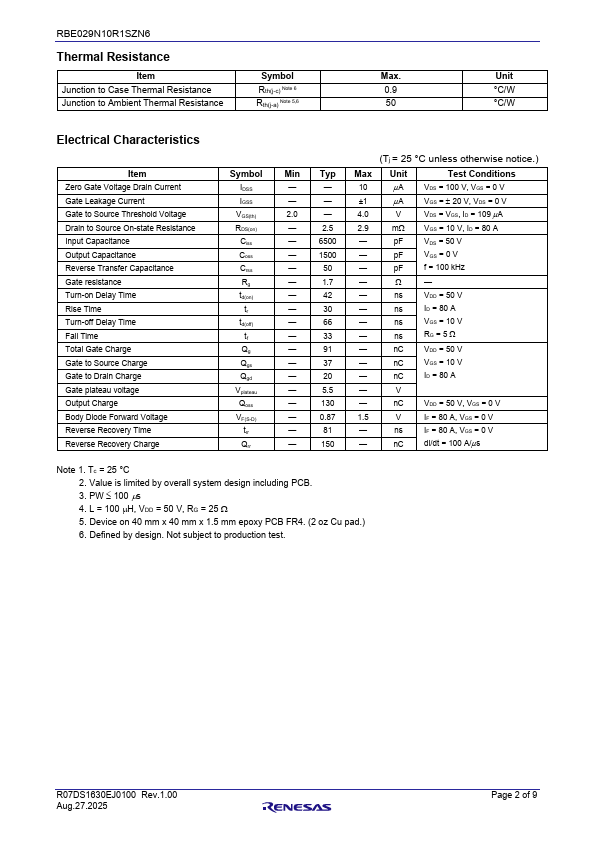

Additional preview pages of the RBE029N10R1SZN6 datasheet.

📁 Similar Datasheet

RBE05SM20A - Schottky Barrier Diode (Rohm)
RBE05VM20A - Schottky Barrier Diode (Rohm)
RBE07V20A - Schottky Barrier Diode (Rohm)
RBE1KA20A - Schottky Barrier Diode (Rohm)
RBE1VA20A - Schottky Barrier Diode (Rohm)
RBE2EA20A - Schottky Barrier Diode (Rohm)
RBE2VA20A - Schottky Barrier Diode (Rohm)

Other Datasheets by Renesas

RBE015N10R1SZPV - 100V 340A N-Channel Power MOSFET
RBE015N10R1SZQ4 - 100V 340A N-Channel Power MOSFET
RBE039N15R1SZPW - 150V 190A N-Channel Power MOSFET
RBE039N15R1SZQ4 - 150V 190A N-Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text

RBE029N10R1SZN6 REXFET-1 N-Channel Power MOSFET 100 V - 160 A - 2.9 mΩ - SO8-FL(5×6) Datasheet Description The RBE029N10R1SZN6 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a 5x6 SO8-FL package. The SO8-FL package features ultra compact, leadless designs with Wettable Flanks to support enhanced thermal performance, reliability and ease of assembly. Renesas' split gate technology is suitable for applications requiring low RDS(on) and switching capability for high-power and high-frequency applications. Features • Standard level gate drive voltage: VGS(th) = 2.0 to 4.0 V • Super low on-state resistance: RDS(on) = 2.9 m Max.
