RBE015N10R1SZQ4 - 100V 340A N-Channel Power MOSFET

Datasheet Summary

Description

The RBE015N10R1SZQ4 N-channel power MOSFET

Features

REXFET-1 split-gate technology and is offered in a TOLL package. The TOLL package features top-side cooling for ultra-compact and optimal thermal performance. Renesas' REXFET-1 split gate technology is suitable for.

Renesas

📥 Download Datasheet

Datasheet Details

Part number	RBE015N10R1SZQ4
Manufacturer	Renesas
File Size	346.24 KB
Description	100V 340A N-Channel Power MOSFET

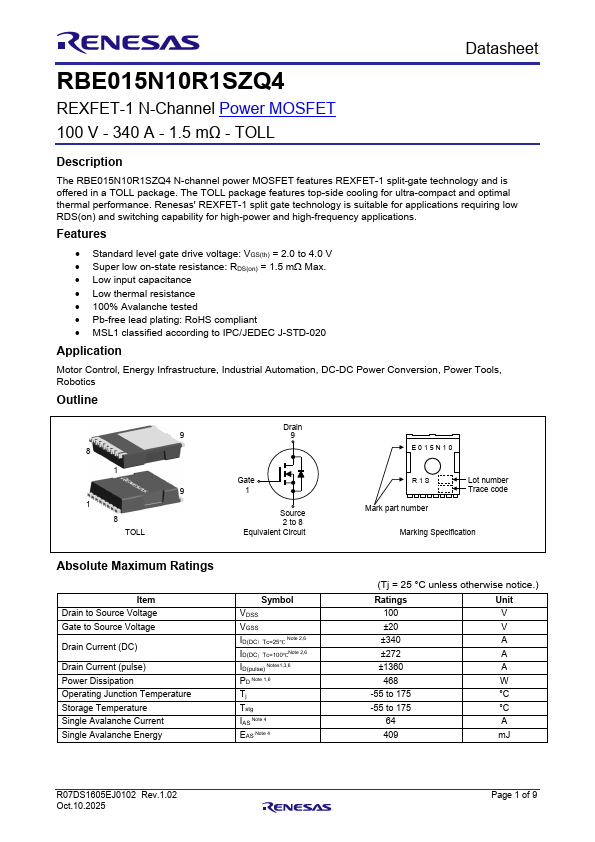

Datasheet	RBE015N10R1SZQ4 Datasheet

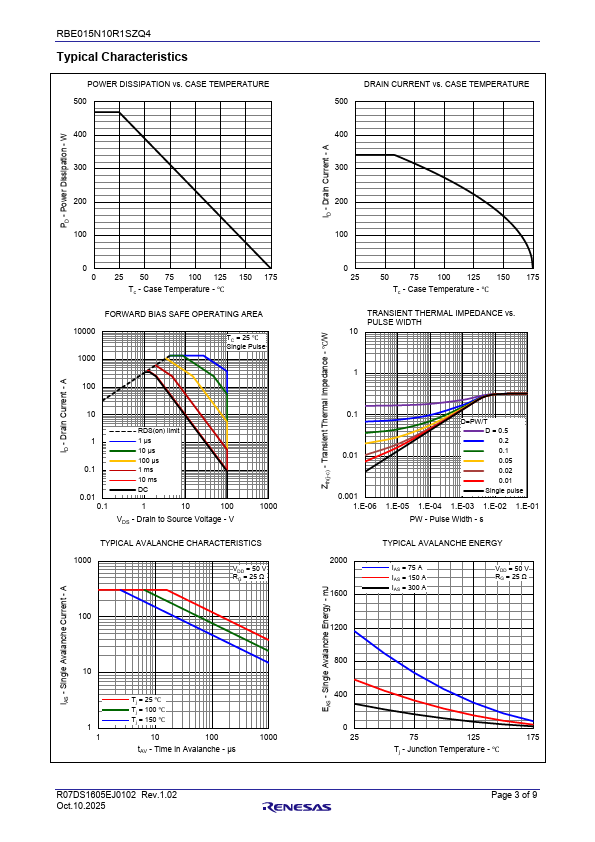

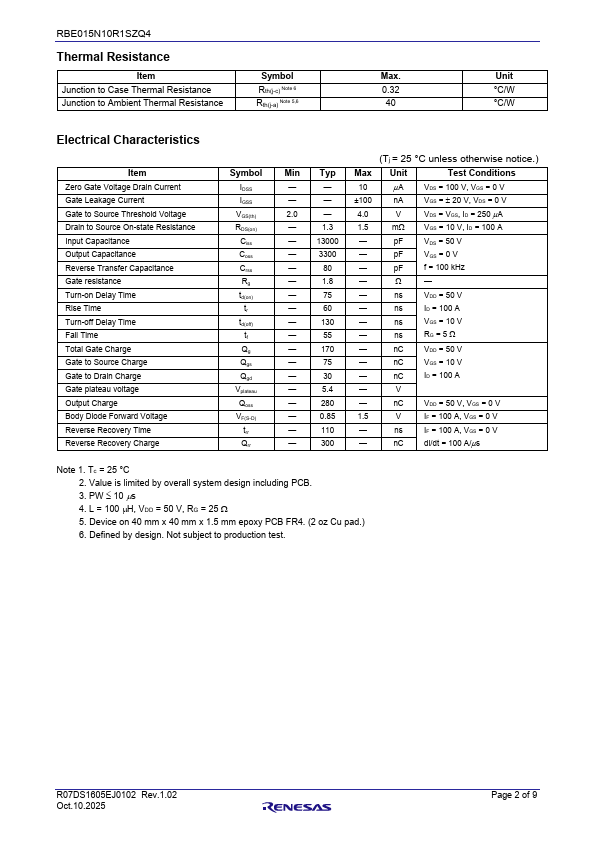

Additional preview pages of the RBE015N10R1SZQ4 datasheet.

📁 Similar Datasheet

RBE05SM20A - Schottky Barrier Diode (Rohm)
RBE05VM20A - Schottky Barrier Diode (Rohm)
RBE07V20A - Schottky Barrier Diode (Rohm)
RBE1KA20A - Schottky Barrier Diode (Rohm)
RBE1VA20A - Schottky Barrier Diode (Rohm)
RBE2EA20A - Schottky Barrier Diode (Rohm)
RBE2VA20A - Schottky Barrier Diode (Rohm)

Other Datasheets by Renesas

RBE015N10R1SZPV - 100V 340A N-Channel Power MOSFET
RBE029N10R1SZN6 - N-Channel Power MOSFET
RBE039N15R1SZPW - 150V 190A N-Channel Power MOSFET
RBE039N15R1SZQ4 - 150V 190A N-Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text

RBE015N10R1SZQ4 REXFET-1 N-Channel Power MOSFET 100 V - 340 A - 1.5 mΩ - TOLL Datasheet Description The RBE015N10R1SZQ4 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a TOLL package. The TOLL package features top-side cooling for ultra-compact and optimal thermal performance. Renesas' REXFET-1 split gate technology is suitable for applications requiring low RDS(on) and switching capability for high-power and high-frequency applications. Features • Standard level gate drive voltage: VGS(th) = 2.0 to 4.0 V • Super low on-state resistance: RDS(on) = 1.5 m Max.
