RBE039N15R1SZQ4 - 150V 190A N-Channel Power MOSFET

Datasheet Summary

Description

The RBE039N15R1SZQ4 N-channel power MOSFET

Features

REXFET-1 split-gate technology and is offered in a TOLL package. The TOLL package features top-side cooling for ultra-compact and optimal thermal performance. Renesas' REXFET-1 split gate technology is suitable for.

Renesas

📥 Download Datasheet

Datasheet Details

Part number	RBE039N15R1SZQ4
Manufacturer	Renesas
File Size	184.55 KB
Description	150V 190A N-Channel Power MOSFET
Datasheet	RBE039N15R1SZQ4 Datasheet

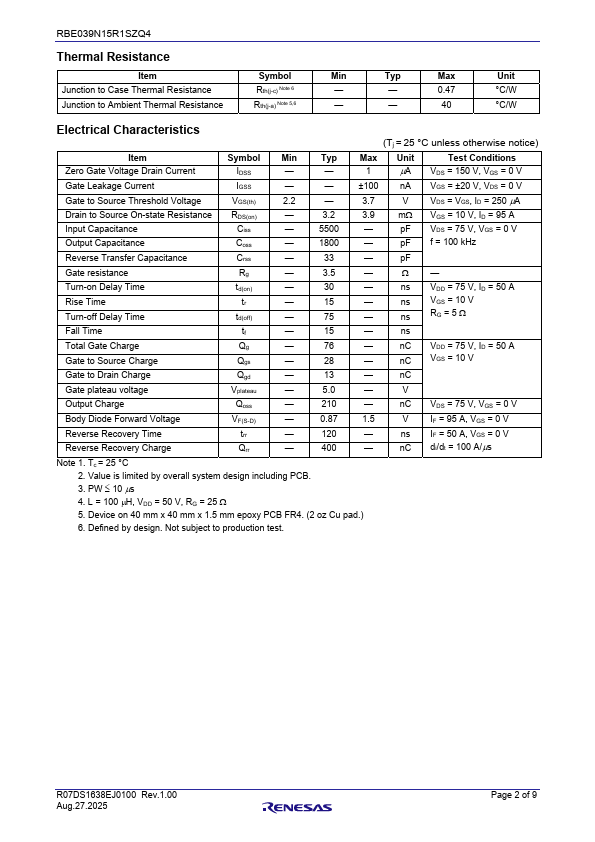

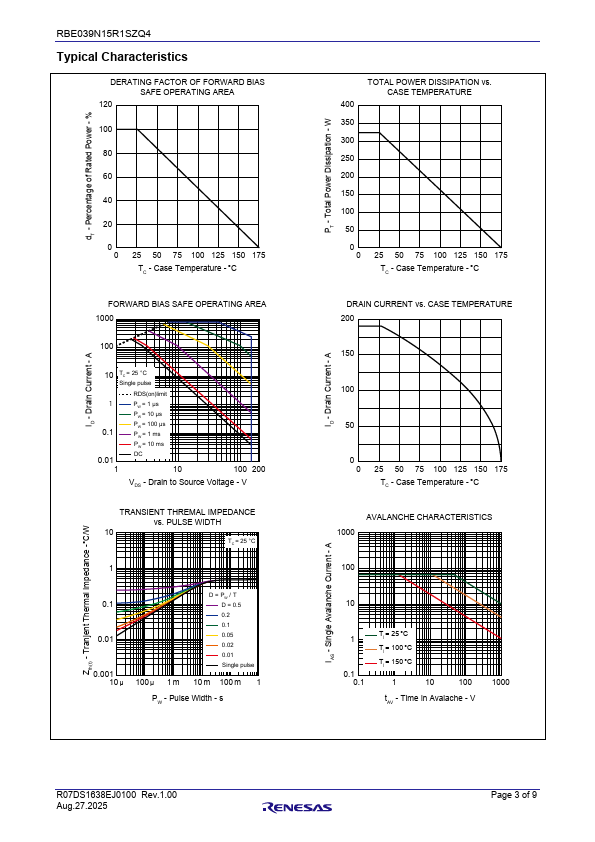

Additional preview pages of the RBE039N15R1SZQ4 datasheet.

📁 Similar Datasheet

RBE05SM20A - Schottky Barrier Diode (Rohm)
RBE05VM20A - Schottky Barrier Diode (Rohm)
RBE07V20A - Schottky Barrier Diode (Rohm)
RBE1KA20A - Schottky Barrier Diode (Rohm)
RBE1VA20A - Schottky Barrier Diode (Rohm)
RBE2EA20A - Schottky Barrier Diode (Rohm)
RBE2VA20A - Schottky Barrier Diode (Rohm)

Other Datasheets by Renesas

RBE039N15R1SZPW - 150V 190A N-Channel Power MOSFET
RBE015N10R1SZPV - 100V 340A N-Channel Power MOSFET
RBE015N10R1SZQ4 - 100V 340A N-Channel Power MOSFET
RBE029N10R1SZN6 - N-Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text

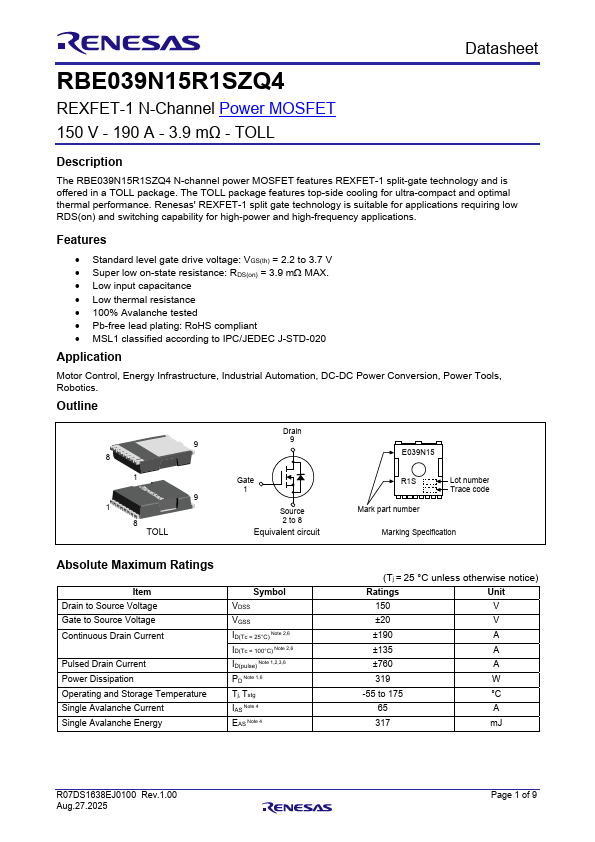

RBE039N15R1SZQ4 REXFET-1 N-Channel Power MOSFET 150 V - 190 A - 3.9 mΩ - TOLL Datasheet Description The RBE039N15R1SZQ4 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a TOLL package. The TOLL package features top-side cooling for ultra-compact and optimal thermal performance. Renesas' REXFET-1 split gate technology is suitable for applications requiring low RDS(on) and switching capability for high-power and high-frequency applications. Features  Standard level gate drive voltage: VGS(th) = 2.2 to 3.7 V  Super low on-state resistance: RDS(on) = 3.9 m MAX.

Published: Oct 28, 2025 |
