RC21005B, RC21008B, VersaClock 7 Programmable Clock Generator

RC210xxB VersaClock 7 Programmable Clock Generator Family Datasheet .
The RC210xxB devices are Renesas’ seventhgeneration high-performance programmable clock generators for compute, data-communications, and industrial ap.

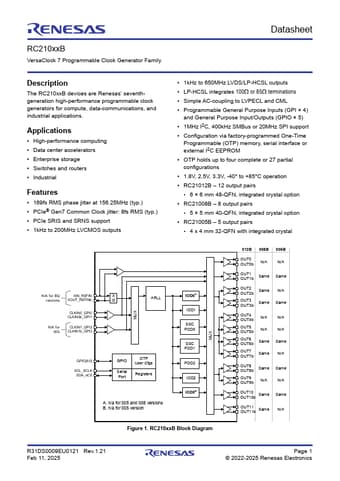

datasheet Preview Page 1 from Datasheet4u.com

RC21008B-Renesas.pdf

RC21005B Datasheet Preview — This datasheet PDF includes multiple part numbers: RC21005B, RC21008B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RC21005B, RC21008B

Manufacturer:

Renesas ↗

File Size:

1.89 MB

Description:

VersaClock 7 Programmable Clock Generator

Note:

This datasheet PDF includes multiple part numbers: RC21005B, RC21008B.
Please refer to the document for exact specifications by model.

Features

* ▪ 169fs RMS phase jitter at 156.25MHz (typ. ) ▪ PCIe® Gen7 Common Clock jitter: 8fs RMS (typ. ) ▪ PCIe SRIS and SRNS support ▪ 1kHz to 200MHz LVCMOS outputs ▪ 1kHz to 650MHz LVDS/LP-HCSL outputs ▪ LP-HCSL integrates 100 or 85 terminations ▪ Simple AC-coupling to LVPECL and CML ▪ Programmable Genera
