RC21012A, RC21008A Datasheet - Renesas

RC21012A - VersaClock 7 Programmable Clock Generator

* RCxx012A .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

7 1.3 Pin Assignments * RCxx008A .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

10 1.4 Pin Descriptio

RC21012A Features

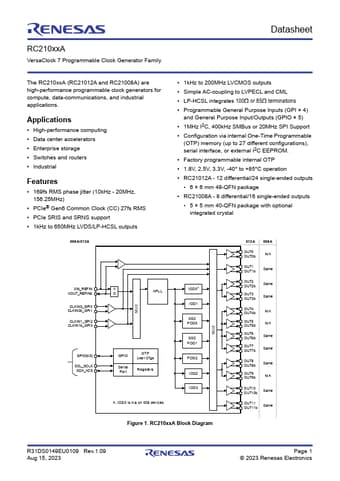

* ▪ 169fs RMS phase jitter (10kHz - 20MHz, 156.25MHz) ▪ PCIe® Gen6 Common Clock (CC) 27fs RMS ▪ PCIe SRIS and SRNS support ▪ 1kHz to 650MHz LVDS/LP-HCSL outputs 008 A/012A XIN_REFIN X XOUT_REFINb O CLKIN0_GPI0 CLKIN0b_GPI1 CLKIN1_GPI2 CLKIN1b_GPI3 APL L GPIO[4:0] SCL_SCLK SDA_nCS GPIO Ser ial

RC21008A-Renesas.pdf

This datasheet PDF includes multiple part numbers: RC21012A, RC21008A. Please refer to the document for exact specifications by model.
RC21012A Datasheet Preview Page 2 RC21012A Datasheet Preview Page 3

Datasheet Details

Part number:

RC21012A, RC21008A

Manufacturer:

Renesas ↗

File Size:

1.90 MB

Description:

Versaclock 7 programmable clock generator.

Note:

This datasheet PDF includes multiple part numbers: RC21012A, RC21008A.
Please refer to the document for exact specifications by model.
