RC21012B, RC21008B - VersaClock 7 Programmable Clock Generator

RC21012B Description

RC210xxB VersaClock 7 Programmable Clock Generator Family Datasheet .
The RC210xxB devices are Renesas’ seventhgeneration high-performance programmable clock generators for compute, data-communications, and industrial ap.

RC21012B Features

* ▪ 169fs RMS phase jitter at 156.25MHz (typ. ) ▪ PCIe® Gen7 Common Clock jitter: 8fs RMS (typ. ) ▪ PCIe SRIS and SRNS support ▪ 1kHz to 200MHz LVCMOS outputs ▪ 1kHz to 650MHz LVDS/LP-HCSL outputs ▪ LP-HCSL integrates 100 or 85 terminations ▪ Simple AC-coupling to LVPECL and CML ▪ Programmable Genera

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RC21012B, RC21008B. Please refer to the document for exact specifications by model.

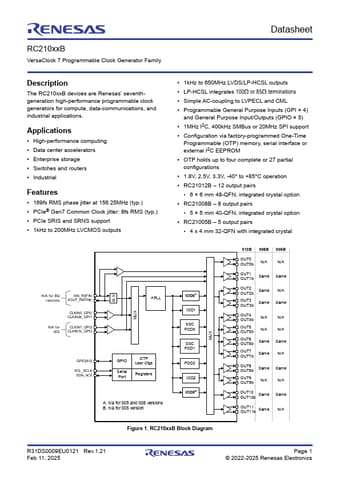

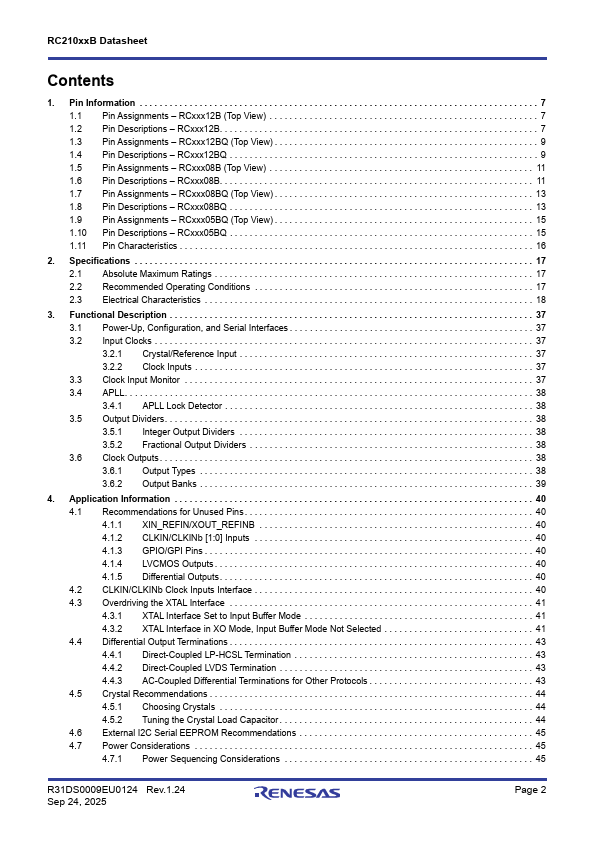

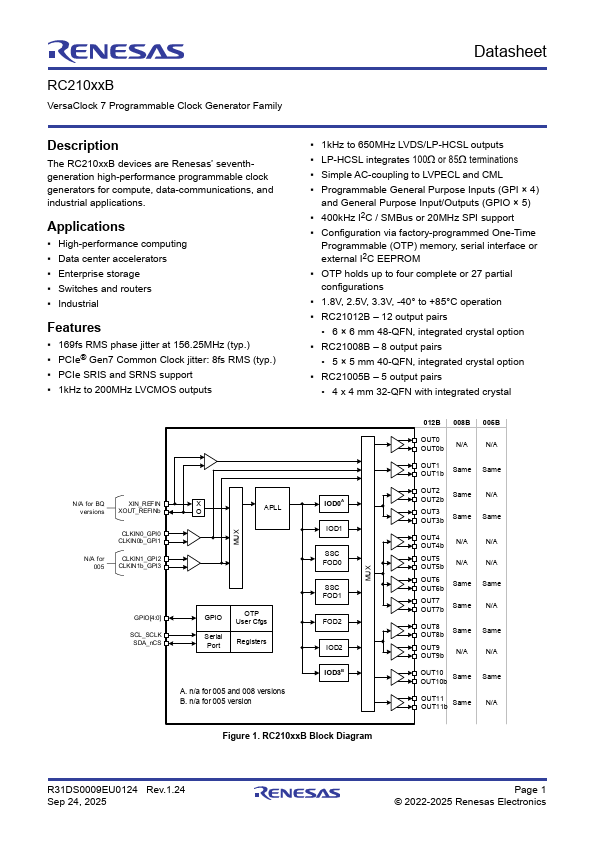

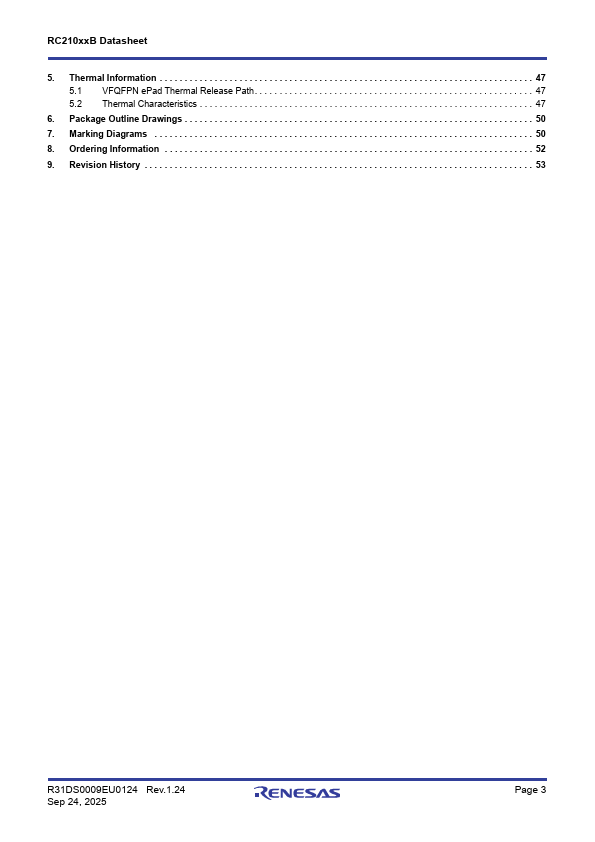

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RC21012B, RC21008B
Manufacturer
Renesas ↗
File Size
1.89 MB
Datasheet
RC21008B-Renesas.pdf
Description
VersaClock 7 Programmable Clock Generator
Note
This datasheet PDF includes multiple part numbers: RC21012B, RC21008B.
Please refer to the document for exact specifications by model.
