SLG46620 - Programmable Mixed-signal Matrix

Renesas

SLG46620 Datasheet Preview — Preview of SLG46620 PDF

Datasheet Details

Part number	SLG46620
Manufacturer	Renesas ↗
File Size	2.81 MB
Description	Programmable Mixed-signal Matrix
Datasheet	SLG46620-Renesas.pdf

SLG46620 Product details

Description

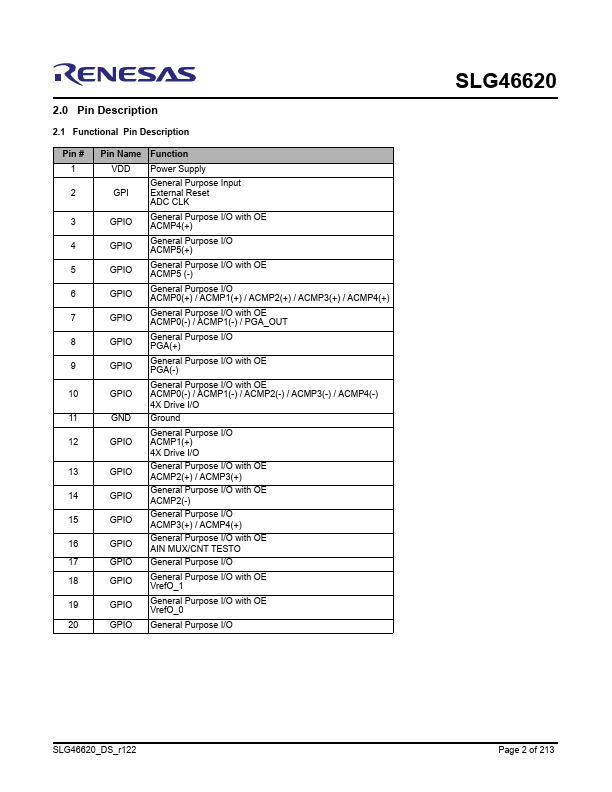

2.1 Functional Pin Description Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Pin Name VDD GPI GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GND GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO Function Power Supply General Purpose Input External Reset ADC CLK General Purpose I/O with OE ACMP4(+) General Purpose I/O ACMP5(+) General Purpose I/O with OE ACMP5 (-) General Purpose I/O ACMP0(+) / ACMP1(+) / ACMP2(+) / ACMP3(+) / ACMP4(+) General Purpose I/O with OE ACMP0(-) / ACMP1(-) / PGA_OUT G

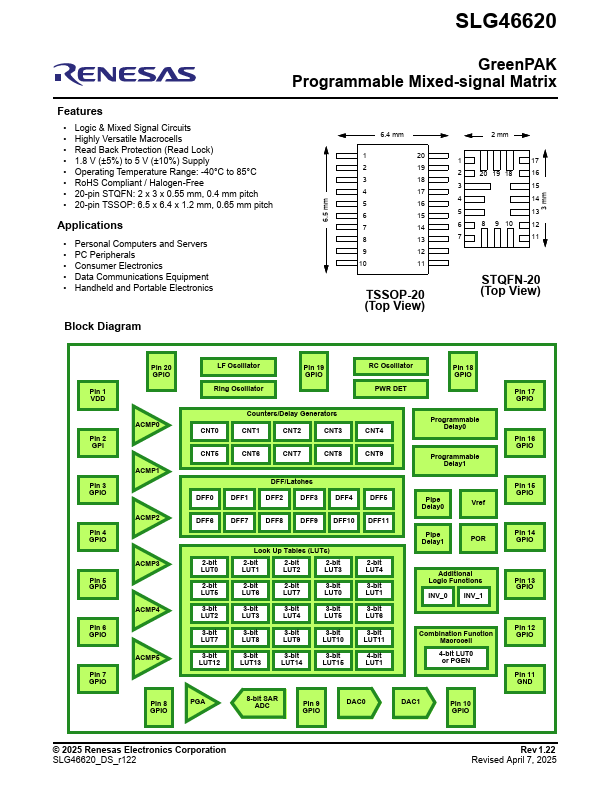

Features

Logic & Mixed Signal Circuits.
Highly Versatile Macrocells.
Read Back Protection (Read Lock).
1.8 V (±5%) to 5 V (±10%) Supply.
Operating Temperature Range: -40°C to 85°C.
RoHS Compliant / Halogen-Free.
20-pin STQFN: 2 x 3 x 0.55 mm, 0.4 mm pitch.
20-pin TSSOP: 6.5 x 6.4 x 1.2 mm, 0.65 mm pitch.
