UPD166015GR Datasheet, Mos, Renesas

UPD166015GR Features

  • Mos
  • High temperature operation (Tch = 175°C MAX.)
  • Built-in charge pump circuit
  • Low on-state resistance RDS(ON) = 100 m MAX. (VIN = VIH, IO = 1.5A, Tch = 25°C)

PDF File Details

Part number:

UPD166015GR

Manufacturer:

Renesas ↗

File Size:

226.09kb

Download:

📄 Datasheet

Description:

N-channel mos. The PD166015 is an N-channel high side driver with built-in charge pump and embedded protection function. It is also a linear soleno

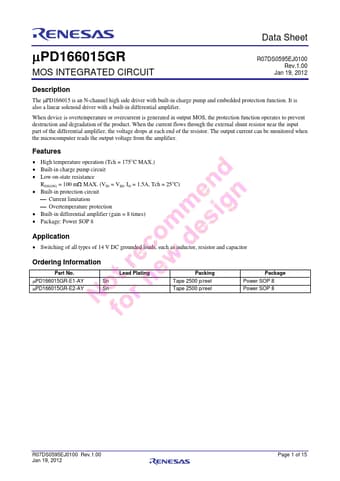

Datasheet Preview: UPD166015GR 📥 Download PDF (226.09kb)
