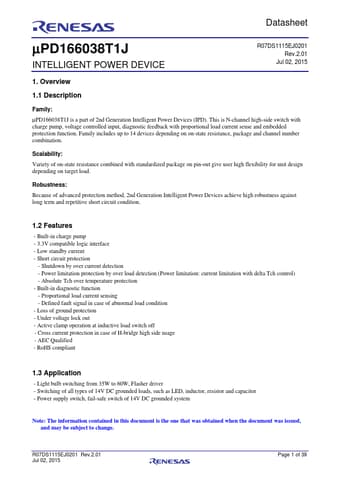

uPD166038T1J Datasheet Preview — Preview of uPD166038T1J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	uPD166038T1J
Manufacturer	Renesas ↗
File Size	594.01 KB
Description	IPD
Datasheet	uPD166038T1J-Renesas.pdf

uPD166038T1J Product details

Description

Family: μPD166038T1J is a part of 2nd Generation Intelligent Power Devices (IPD).

Features

- Built-in charge pump - 3.3V compatible logic interface - Low standby current - Short circuit protection - Shutdown by over current detection - Power limitation protection by over load detection (Power limitation: current limitation with delta Tch control) - Absolute Tch over temperature protection - Built-in diagnostic function - Proportional load current sensing - Defined fault signal in case of abnormal load condition - Loss of ground protection - Under voltage lock out - Active clamp operat.
