uPD166032T1U - INTELLIGENT POWER DEVICE - IPD

Renesas

📥 Download Datasheet

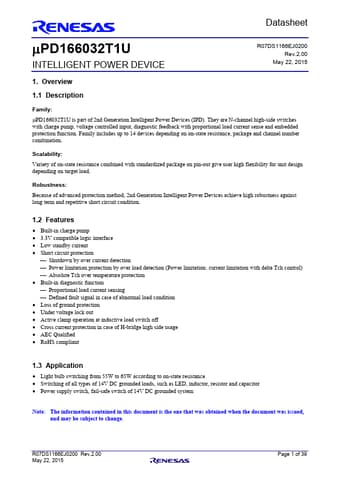

uPD166032T1U Datasheet Preview — Preview of uPD166032T1U PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	uPD166032T1U
Manufacturer	Renesas ↗
File Size	782.46 KB
Description	INTELLIGENT POWER DEVICE - IPD
Datasheet	uPD166032T1U-Renesas.pdf

uPD166032T1U Product details

Description

Family: µPD166032T1U is part of 2nd Generation Intelligent Power Devices (IPD).

Features

Built-in charge pump.
3.3V compatible logic interface.
Low standby current.
Short circuit protection  Shutdown by over current detection  Power limitation protection by over load detection (Power limitation: current limitation with delta Tch control)  Absolute Tch over temperature protection.
Built-in diagnostic function  Proportional load current sensing  Defined fault signal in case of abnormal load condition.
Loss of ground protectio.
