uPD166035GR Datasheet, Ipd, Renesas

uPD166035GR Features

  • Ipd
  • High temperature operation (Tch = 175°C MAX.)
  • Built-in charge pump circuit
  • Low on-state resistance RDS(ON) = 80 mW MAX. (VIN = VIH, IO = 1.5A, Tch = 25°C)

PDF File Details

Part number:

uPD166035GR

Manufacturer:

Renesas ↗

File Size:

527.62kb

Download:

📄 Datasheet

Description:

Intelligent power device - ipd. The mPD166035 is an N-channel high side driver with built-in charge pump and embedded protection function. When device is overtempera

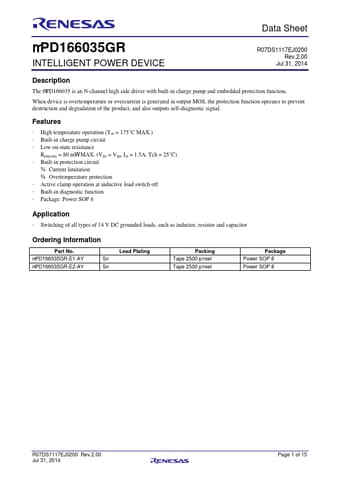

Datasheet Preview: uPD166035GR 📥 Download PDF (527.62kb)
