PQ2020 Datasheet - Rhombus Industries

PQ2020 PQ2020

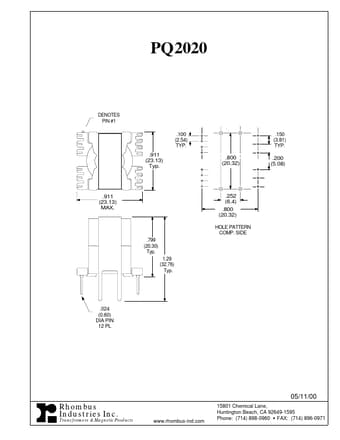

PQ2020 DENOTES PIN #1 .911 (23.13) Typ. .100 (2.54) TYP. .911 (23.13) MAX. .799 (20.30) Typ. 1.29 (32.76) Typ. .800 (20.32) .150 (3.81) TYP. .200 (5.08) .252 (6.4) .800 (20.32) HOLE PATTERN COMP. SIDE .024 (0.60) DIA PIN 12 PL Rhombus Industries Inc. Transformers & Magnetic Products www.rhombus-ind.com 05/11/00 15801 Chemical Lane, Huntington Beach, CA 92649-1595 Phone: (714) 898-0960 FAX: (714) 896-0971 .

PQ2020-RhombusIndustries.pdf

Preview of PQ2020 PDF

Datasheet Details

Part number:

PQ2020

Manufacturer:

Rhombus Industries

File Size:

18.23 KB

Description:

Pq2020.
