PQ20RX05 - (PQ20RX05 / PQ20RX11) Variable Output Type Low Power-Loss Voltage Regulator

Product Overview

Sharp Electrionic

Part number	PQ20RX05
Manufacturer	Sharp Electrionic
File Size	88.68 KB
Description	(PQ20RX05 / PQ20RX11) Variable Output Type Low Power-Loss Voltage Regulator
Datasheet	PQ20RX05 Datasheet
Additional preview pages of the PQ20RX05 datasheet.

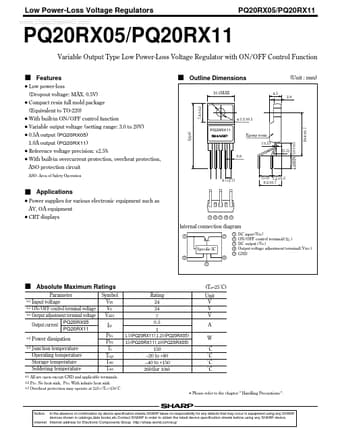

s Outline Dimensions 10.2MAX 4.5 (Unit : mm) Low power-loss (Dropout voltage: MAX. 0.5V) q Compact resin full mold package (Equivalent to TO-220) q With built-in ON/OFF control function q Variable output voltage (setting range: 3.0 to 20V) q 0.5A output (PQ20RX05) 1.0A output (PQ20RX11) q Reference voltage precision: ±2.5% q With built-in overcurrent protection, overheat protection, ASO protection circuit ASO: Area of Safety Operation 2.8 7.4 ± 0.2 φ 3.2 ±0.1 PQ20RX11 Epoxy resin (1.5 ).
