PQ20VZ51 - Variable Output / Surface Mount Type Low Power-Loss Voltage Regulators

PQ20VZ51 Description

Low Power-Loss Voltage Regulators PQ20VZ51/PQ20VZ11 PQ20VZ51/PQ20VZ11 Variable Output, Surface Mount Type Low Power-Loss Voltage Regulators s Featur.

PQ20VZ51 Features

* ¡Low power-loss (Dropout voltage : 0.5V) ¡Compact surface mount package ¡ Both the 0.5A output PQ20VZ51 and the 1A output PQ20VZ11 have high-precision outputs (Reference voltage precision : ±2.0%) ¡Variable output type (Output voltage variable range : 1.5V to 20V) ¡Built-in ON-OFF control function ¡

PQ20VZ51 Applications

* ¡Car audio equipment ¡VCR 12345 Internal connection diagram 1 2 Specific IC 5 1 DC input (VIN) 2 ON/OFF control terminal (VC) 3 DC output (VO) 4 Output voltage minute adjustment terminal (VADJ) 5 GND Heat sink is common to 3 (VO). 3 4 s Absolute Maximum Ratings Parameter
* 1
* 1
* 1 (T

📥 Download Datasheet

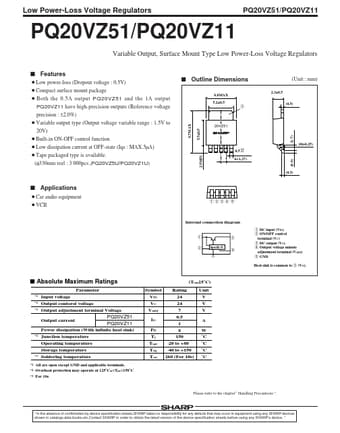

Preview of PQ20VZ51 PDF
