PQ200WNA1ZPH - Low Power Loss Voltage Regulators

PQ200WNA1ZPH Description

PQ200WNA1ZPH PQ200WNA1ZPH Compact Surface Mount type Low Power-Loss Voltage Regulators .

PQ200WNA1ZPH Features

* 1.Output current : 1A 2.High isolation voltage VIN:MAX.24 V 3.Low dissipation current www. DataSheet4U. com (Dissipation current at no load: MAX. 8mA Output OFF-state dissipation current: MAX.5μA) 4.Built-in ON/OFF function 5.Built-in overcurrent and overheat protection functions 6.Built-in ASO protec

PQ200WNA1ZPH Applications

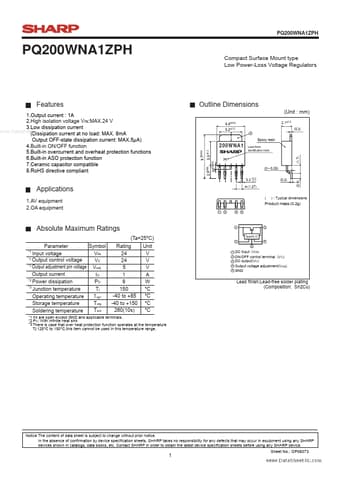

* 1.AV equipment 2.OA equipment 4-(1.27) ( ) : Typical dimensions Product mass:(0.2g) 1 2 4 5 Absolute Maximum Ratings (Ta=25°C) Parameter Symbol
* 1 Input voltage VIN
* 1 Output control voltage VC
* 1 Output adjustment pin voltage Vadj Output current IO
* 2 PD Power dissipation
* 3
