RT8035 - 1.25MHz Synchronous Step-Down Converter

Richtek

📥 Download Datasheet

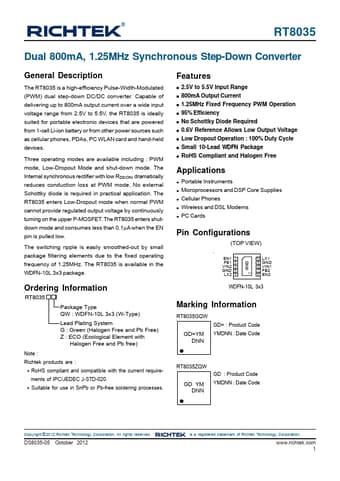

RT8035 Datasheet Preview — Preview of RT8035 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RT8035
Manufacturer	Richtek ↗
File Size	213.89 KB
Description	1.25MHz Synchronous Step-Down Converter
Datasheet	RT8035-Richtek.pdf

RT8035 Product details

Description

The RT8035 is a high-efficiency Pulse-Width-Modulated (PWM) dual step-down DC/DC converter.

Features

z 2.5V to 5.5V Input Range z 800mA Output Current z 1.25MHz Fixed Frequency PWM Operation z 95% Efficiency z No Schottky Diode Required z 0.6V Reference Allows Low Output Voltage z Low Dropout Operation : 100% Duty Cycle z Small 10-Lead WDFN Package z RoHS Compliant and Halogen Free.
