RT8035A Datasheet - Richtek

1.25MHz Synchronous Step-Down Converter

RT8035A Features

* z 2.5V to 6V Input Range z 800mA Output Current z 1.25MHz Fixed Frequency PWM Operation z 95% Efficiency z No Schottky Diode Required z 0.6V Reference Allows Low Output Voltage z Low Dropout Operation : 100% Duty Cycle z Small 10-Lead WDFN Package z RoHS Compliant and Halogen Free Applications z Por

RT8035A General Description

The RT8035A is a high-efficiency Pulse-Width-Modulated (PWM) dual step-down DC/DC converter. Capable of delivering up to 800mA output current over a wide input voltage range from 2.5V to 6V, the RT8035A is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or .

RT8035A Datasheet (212.09 KB)

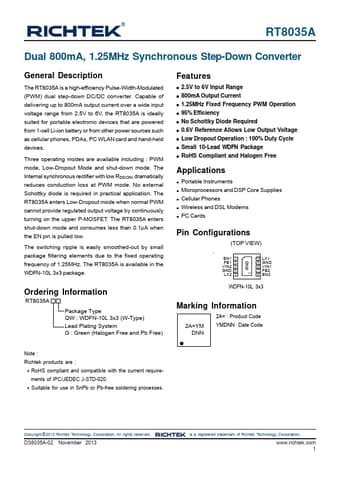

RT8035A Datasheet Preview — Preview of RT8035A PDF

Datasheet Details

Part number:

RT8035A

Manufacturer:

Richtek

File Size:

212.09 KB

Description:

1.25mhz synchronous step-down converter.
