RT8035GQW Datasheet, Converter, Richtek

RT8035GQW Features

  • Converter z 2.5V to 5.5V Input Range z 800mA Output Current z 1.25MHz Fixed Frequency PWM Operation z 95% Efficiency z No Schottky Diode Required z 0.6V Reference Allows Low Output Voltage z Low

PDF File Details

Part number:

RT8035GQW

Manufacturer:

Richtek

File Size:

213.89kb

Download:

📄 Datasheet

Description:

1.25mhz synchronous step-down converter. The RT8035 is a high-efficiency Pulse-Width-Modulated (PWM) dual step-down DC/DC converter. Capable of delivering up to 800mA output

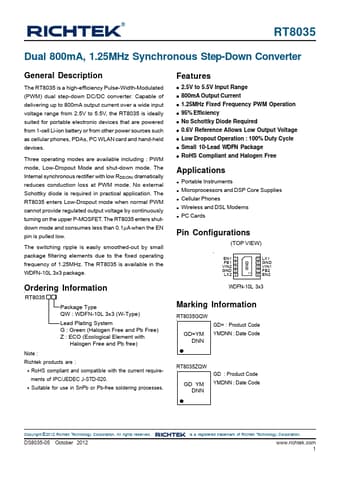

Datasheet Preview: RT8035GQW 📥 Download PDF (213.89kb)
Page 2 of RT8035GQW Page 3 of RT8035GQW

RT8035GQW Application

  • Applications z Portable Instruments z Microprocessors and DSP Core Supplies z Cellular Phones z Wireless and DSL Modems z PC Cards Pin Configuratio
