RT8036 One Step Down DC/DC Converter and Four Linear Regulators

RT8036 Description

RT8036 One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control General .
The RT8036 is an integrated power management unit which integrates one 600mA high efficiency step down DC/DC converter and four low dropout voltage re.

RT8036 Applications

* z Smart Handheld device z Cellular phone Pin Configurations (TOP VIEW) VOUTL2 VOUTL1 NC AGND VINL2 VINL1 ENL1 ENL2 VINB LX 20 19 18 17 16 1 15 VOUTL3 2 14 VOUTL4 3 GND 13 AGND 4 21 12 ENL4 5 11 ENL3 6 7 8 9 10 PGND ENB PGND VOUTB PGND WQFN-20L 3x3 Marking Information For marking informat

📥 Download Datasheet

Preview of RT8036 PDF

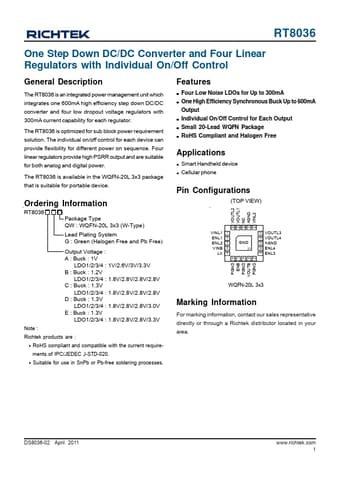

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8036
Manufacturer
Richtek
File Size
324.61 KB
Datasheet
RT8036-Richtek.pdf
Description
One Step Down DC/DC Converter and Four Linear Regulators
