RT8167B - Dual Single-Phase PWM Controller

Name: RT8167B
SKU: RT8167B-1027999

Richtek

📥 Download Datasheet

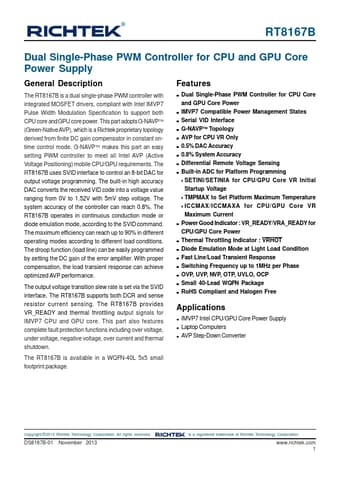

RT8167B Datasheet Preview — Preview of RT8167B PDF

Datasheet Details

Part number	RT8167B
Manufacturer	Richtek
File Size	485.20 KB
Description	Dual Single-Phase PWM Controller
Datasheet	RT8167B-Richtek.pdf

RT8167B Product details

Description

The RT8167B is a dual single-phase PWM controller with integrated MOSFET drivers, compliant with Intel IMVP7 Pulse Width Modulation Specification to support both CPU core and GPU core power.

Features

complete fault protection functions including over voltage, under voltage, negative voltage, over current and thermal shutdown. The RT8167B is available in a WQFN-40L 5x5 small footprint package. Features.
Dual Single-Phase PWM Controller for CPU Core and GPU Core Power.
IMVP7 Compatible Power Management States.
Serial VID Interface.
G-NAVPTM Topology.
AVP for CPU VR Only.
0.5% DAC Accuracy.
0.8% System Accuracy.
Differential Remote Voltage Sensing.
