RT8166B Dual Single-Phase PWM Controller

RT8166B Description

® RT8166B Dual Single-Phase PWM Controller for CPU and GPU Core Power Supply General .
The RT8166B is a dual single-phase PWM controller with integrated MOSFET drivers, compliant with Intel IMVP7 Pulse Width Modulation Specification to s.

RT8166B Features

* complete fault protection functions including over voltage, under voltage, negative voltage, over current and thermal shutdown. The RT8166B is available in a WQFN-40L 5x5 small footprint package. Features
* Dual Single-Phase PWM Controller for CPU Core and GPU Core Power
* IMVP7 Compatible

RT8166B Applications

* IMVP7 Intel CPU/GPU Core Power Supply
* Laptop Computers
* AVP Step-Down Converter Marking Information RT8166BZQW : Product Number RT8166B ZQW YMDNN YMDNN : Date Code Copyright ©2013 Richtek Technology Corporation. All rights reserved. DS8166B-03 November 2013 is a registered tra

📥 Download Datasheet

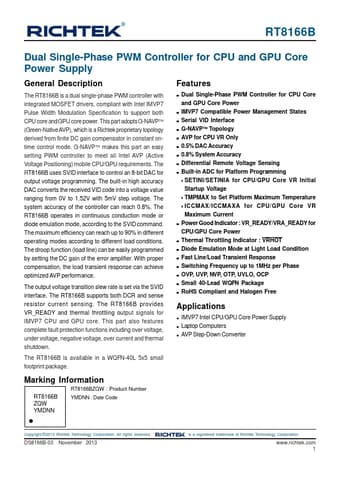

Preview of RT8166B PDF
