RT8165B - Dual Single-Phase PWM Controller

Name: RT8165B
SKU: RT8165B-1028000

Richtek

📥 Download Datasheet

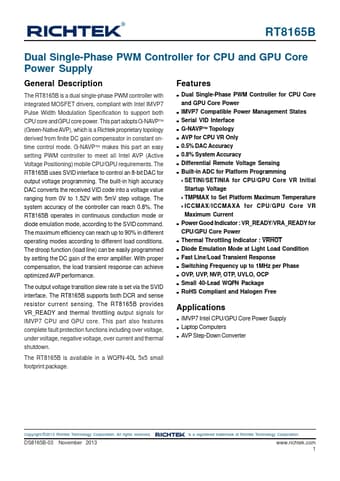

RT8165B Datasheet Preview — Preview of RT8165B PDF

Datasheet Details

Part number	RT8165B
Manufacturer	Richtek
File Size	487.79 KB
Description	Dual Single-Phase PWM Controller
Datasheet	RT8165B-Richtek.pdf

RT8165B Product details

Description

The RT8165B is a dual single-phase PWM controller with integrated MOSFET drivers, compliant with Intel IMVP7 Pulse Width Modulation Specification to support both CPU core and GPU core power.

Features

complete fault protection functions including over voltage, under voltage, negative voltage, over current and thermal shutdown. The RT8165B is available in a WQFN-40L 5x5 small footprint package. Features.
Dual Single-Phase PWM Controller for CPU Core and GPU Core Power.
IMVP7 Compatible Power Management States.
Serial VID Interface.
G-NAVPTM Topology.
AVP for CPU VR Only.
0.5% DAC Accuracy.
0.8% System Accuracy.
Differential Remote Voltage Sensing.
