RT8165A Dual Single-Phase PWM Controller

RT8165A Description

RT8165A Dual Single-Phase PWM Controller for CPU Core/GFX Power Supply General .
The RT8165A is a dual single-phase synchronous Buck PWM controller with integrated gate drivers, compliant with Intel VR12/IMVP7 specification.

RT8165A Features

* complete fault protection functions, including over voltage, under voltage, negative voltage, over current and under voltage lockout. The RT8165A is available in a WQFN-48L 6x6 small foot print package. Marking Information RT8165AGQW RT8165A GQW YMDNN RT8165AGQW : Product Number YMDNN : Date Code

RT8165A Applications

* z VR12 / IMVP7 Intel CPU Core Supply z AVP Step-down Converter z Notebook/ Netbook/ Desktop Computer CPU Core Supply Ordering Information RT8165A Package Type QW : WQFN-48L 6x6 (W-Type) Lead Plating System G : Green (Halogen Free and Pb Free) Z : ECO (Ecological Element, Halogen Free) Note : Richtek

📥 Download Datasheet

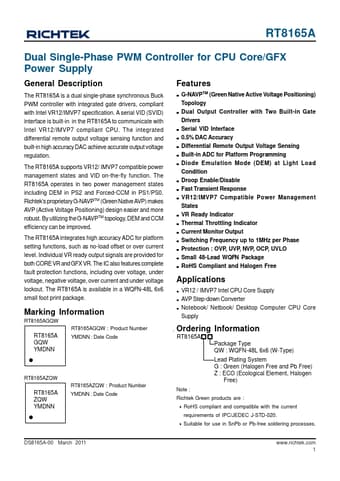

Preview of RT8165A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8165A
Manufacturer
Richtek
File Size
506.04 KB
Datasheet
RT8165A-Richtek.pdf
Description
Dual Single-Phase PWM Controller
