RT8862

Advanced 4/3/2/1-Phase PWM Controller

RT8862 Features

* include adjustable operating frequency, adjustable soft start, power good indication, external error-amp compensation, over voltage protection, over current protection and enable/shutdown for various application. RT8862 comes to a small footprint with WQFN-48L 7x7 package. Ordering Information RT8

RT8862 General Description

The RT8862 is an advanced 4/3/2/1-phase synchronous buck controller with 2 integrated MOSFET drivers for Intel VR11/VR10 and AMD K8/K8_M2 CPUs power application. RT8862 adopts state-of-the-art dynamic phase control capability. That achieves high efficiency over wide load range. It uses differential .

RT8862 Datasheet (424.49 KB)

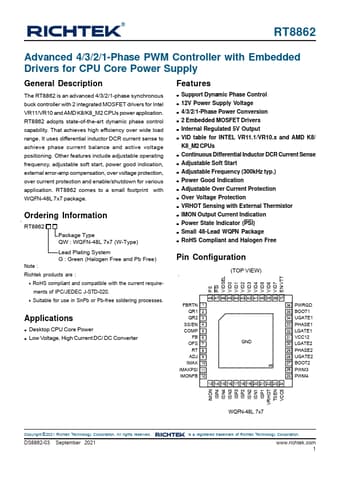

Preview of RT8862 PDF

Datasheet Details

Part number:

RT8862

Manufacturer:

Richtek

File Size:

424.49 KB

Description:

Advanced 4/3/2/1-phase pwm controller.
