RT8880A - Dual-Output PWM Controller

Richtek

📥 Download Datasheet

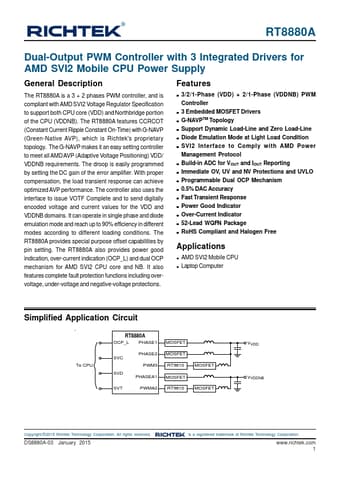

RT8880A Datasheet Preview — Preview of RT8880A PDF

Datasheet Details

Part number: RT8880A
Manufacturer: Richtek
File Size: 492.57 KB
Datasheet: RT8880A-Richtek.pdf
Description: Dual-Output PWM Controller

RT8880A Product details

Description

The RT8880A is a 3 + 2 phases PWM controller, and is compliant with AMD SVI2 Voltage Regulator Specification to support both CPU core (VDD) and Northbridge portion of the CPU (VDDNB).

Features

CCRCOT (Constant Current Ripple Constant On-Time) with G-NAVP (Green-Native AVP), which is Richtek's proprietary topology. The G-NAVP makes it an easy setting controller to meet all AMDAVP (Adaptive Voltage Positioning) VDD/ VDDNB requirements. The droop is easily programmed by setting the DC gain of the error amplifier. With proper compensation, the load transient response can achieve optimized AVP performance. The controller also uses the interface to issue VOTF Complete and to send digitally.
