RT8900 Datasheet, Shifter, Richtek

RT8900 Features

• Shifter z 0V to 6V Input Logic level Range z
• 10V to 35V Output Voltage Range z 15mA Output Continuous Current (per channel) z 150mA Output Peak Current (per channel) z Rise/Fall Times

PDF File Details

Part number:

RT8900

Manufacturer:

Richtek

File Size:

133.46kb

Download:

📄 Datasheet

Description:

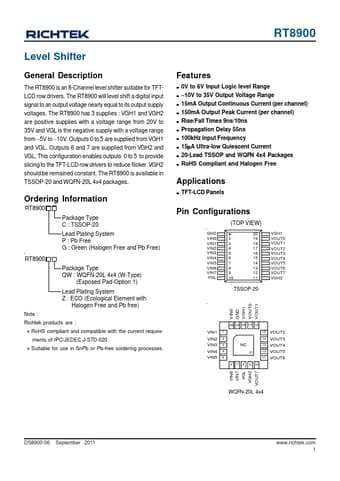

Level shifter. The RT8900 is an 8-Channel level shifter suitable for TFTLCD row drivers. The RT8900 will level shift a digital input signal to an ou

RT8900 Application

• Applications z TFT-LCD Panels Pin Configurations GND VIN0 VIN1 VIN2 VIN3 VIN4 VIN5 VIN6 VIN7 VGL (TOP VIEW) 20 2 19 3 18 4 17 5 16 6 15 7 14 8 13
