RT8910A, 10-Channel High Voltage Level Shifter

® RT8910A 10-Channel High Voltage Level Shifter General .
The RT8910A provides a 10-Channel level shifter suitable for TFT-LCD row drivers.

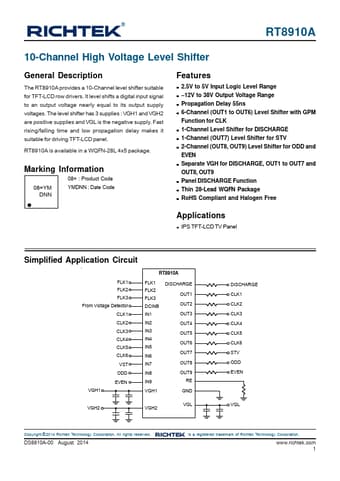

datasheet Preview Page 1 from Datasheet4u.com

RT8910A-Richtek.pdf

RT8910A Datasheet Preview — Preview of RT8910A PDF

Datasheet Details

Part number:

RT8910A

Manufacturer:

Richtek

File Size:

189.67 KB

Description:

10-Channel High Voltage Level Shifter

Features

* 2.5V to 5V Input Logic Level Range
* 12V to 38V Output Voltage Range
* Propagation Delay 55ns
* 6-Channel (OUT1 to OUT6) Level Shifter with GPM Function for CLK
* 1-Channel Level Shifter for DISCHARGE
* 1-Channel (OUT7) Level Shifter for STV
* 2-Channel (OUT8,

Applications

* IPS TFT-LCD TV Panel Simplified Application Circuit FLK1 FLK2 FLK3 From Voltage Detector CLK1 CLK2 CLK3 CLK4 CLK5 CLK6 VST ODD VGH1 EVEN RT8910A FLK1 FLK2 FLK3 DCINB IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8 IN9 DISCHARGE OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 RE VGH1 GND VGH2 VGH2
